DUAL SPECTRUM
TOTAL VISION
Bi-spectral technology delivers uncompromising security by seamlessly integrating
thermal detection with high-resolution optical imaging.
This dual-lens architecture ensures uninterrupted 24/7 monitoring across diverseenvironments. Thermal sensors instantly detect heat signatures and anomalies in totaldarkness or adverse weather, while the visible light lens simultaneously capturesdefinitive visual details. The result is comprehensive situational awareness and proactivesafeguarding of critical infrastructure.
| Bi-Spectral Camera | ||
 |  | |

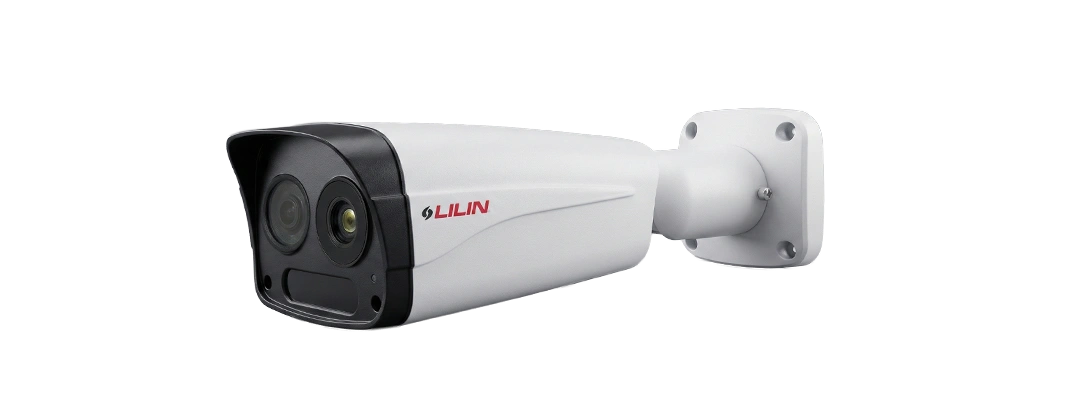

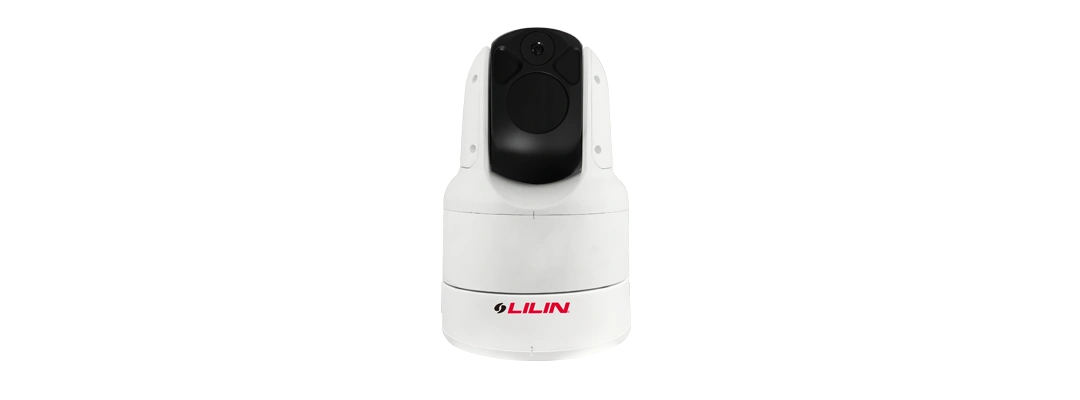

| Model | S7R5924MX30-T19 | P7R9A82E4-T3 |
|---|---|---|
| Resolution | 1080P | 4K ( D & N ) |
| Focal length | 4.3 (Wide) – 129.0 (Tele) mm | 4mm |
| Aperture | F1.6(Wide) – F4.7(Tele) | F 1.6 |
| Angle of view (H) | 72.3°(W) – 2.9°(T) (H) 43.3°(W) – 1.7°(T) (V) 81.0°(W) – 3.3°(T) (D) | 86.6° (H), 46° (V), 103.4° (D) |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 1945 (H) × 1097 (V) | 3864 × 2176 |
| Min. illumination | 0.01 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.008 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0.003 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.0009 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0 Lux with IR LED ON | Color 0.04 Lux at F1.6, B/W: 0.008 Lux at F1.6, 0 Lux with IR LED ON |
| FPS at max. resolution | Optical: 30FPS @ 1920x1080 Thermal: 30FPS @ 1280x960 | Optical: 60Hz: 25 FPS @ 3840 x 2160, 30FPS @ 1920 x 1080; 50Hz: 25 FPS @ 3840 x 2160, 25FPS @ 1920 x 1080; Thermal: 30FPS / 25FPS @ 1280x960 |
| Max. IR distance | 100m | 50M |
| Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Streams | 4 | 4 |
| Privacy masking | OFF / ON ( Up to 16 area) | 4 zones |
| Digital I/O | 4 / 2 | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP66 / IK10 | IP67 / IK10 |
| Power supply | AC24V ±10% / DC24V / PoE++(IEEE802.3bt) | DC12V, 12W / PoE+, 13W |
| Mobile phone | iOS, Android | iOS, Android |
| ONVIF | ONVIF Profile S&T&G | ONVIF Profile S |
| Thermal Image sensor | Uncooled microbolometer | Vanadium Oxide uncooled focal plane Arrays |
| Thermal Pixel Size | 12 μm | 12 μm |
| Thermal NETD | <50mK @ 25°C | <50mK |
| Thermal Focal Length | 19mm | 3.7mm |
| Thermal Minimum Aperture Ratio | F1.0 | F1.0 |
| Thermal Minimum Object Distance | 31m | 1.6m |
| Thermal Angle of View | 11.6° (H) 8.7° (V) | 60.0° (H) 47.8° (V) |
| Thermal Wavelength | 8 – 14 μm | 8 – 14 μm |
| Thermal Max. Resolution | 320 x 240 | 320 x 240 |
| Thermal Aspect ratio | 4:3 | 4:3 |
3
AI Models
Conversion
Behavior
Encryption
MODULIZED
AI MODELS
If AI models could be directly running oncameras, there would be no need for extracomputers.
LILIN Self+AI model conversion cloud allowsintegration of various AI features like objectrecognition and behavior detection.
Cameras can even draw warning zones.
Direct communication with peripherals enablestasks like opening gates for whitelisted vehicles,simplifying AIoT setups.
Output
5
SATISFYING
DIVERSE
ENVIRONMENTS
Virtual Fence
Drawing lines on the screen to define alert andnon-alert zones allows for event triggering.This setup facilitates the detection of entry,exit, loitering, lost items, and the designationof 'cold zones' to prevent false alarms.
Lost or Forget
Object disappearance or the appearance ofunidentified objects can trigger alerts usingAI cameras, combining object and behaviorrecognition.
Safety
Ensuring worker safety by detectingcompliance with safety gear like helmets,vests, and masks in designated areas. Logicalconditions can determine variations such ascorrect, incorrect, or absent wear, all throughbehavior detection.
Counting
Monitoring parking capacity, personnel count,and regulating access provide crucial businessinsights.
Monitored data with periodic counter resetsoffers precise segmentation.
By leveraging object recognition and behaviordetection, a myriad of specialized applicationscan be crafted.
LILIN's 7 Series AI cameras have garneredwidespread adoption in domains such as trafficenforcement, public safety, and industrialautomation, earning acclaim and validationwithin vertical markets.
With a streamlined and robust intelligentrecognition framework, significant costreductions are achieved in installation, wiring,and upkeep. Furthermore, seamless integrationwith peripheral equipment is effortlesslyfacilitated.
EDGE AI
Image Recognition
FLEXIBLE
Model Conversion
BEHAVIOR
Event Detect
| Z7 4K H.265 Camera | |||||
 |  | | |  | |
| Model | Z7R6482X3-P | Z7R8182X3-P | Z7R8182X2-P | Z7R8182X10-P | Z7R8082EX30 |
|---|---|---|---|---|---|
| Resolution | 4K ( D & N ) | 4K ( D & N ) | 4K ( D & N ) | 4K ( D & N ) | 4K ( D & N ) |
| Focal length | 2.8~12mm | 2.8~12mm | 6~22mm | 5 – 50mm | 4.94 (WIDE) – 148.2 (TELE) mm |
| Aperture | F 1.6(W) - F 3.3(T) | F 1.6(W) - F 3.3(T) | F 1.6(W) - F 3.3(T) | F 2.0 | F1.3(Wide) – F4.8(Tele) |
| Angle of view (H) | 108.0° (W) - 31.5° (T) | 108.0° (W) - 31.5° (T) | 42.8° (W) - 18.3° (T) | 41.8° (W) – 6.4° (T) | 59.8°(W) – 2.1°(T) |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 3864 × 2176 | 3864 × 2176 | 3864 × 2176 | 3864 × 2176 | 3864 × 2176 |
| Min. illumination | Color : 0.04 Lux at F1.6 B/W : 0.008 Lux at F1.6 0 Lux with IR LED ON | Color : 0.04 Lux at F1.6 B/W : 0.008 Lux at F1.6 0 Lux with IR LED ON | Color : 0.04 Lux at F1.6 B/W : 0.008 Lux at F1.6 0 Lux with IR LED ON | Color : 0.05 Lux at F2.0 B/W : 0.01 Lux at F2.0 0 Lux with IR LED ON | Color : 0.04 lux at F1.3 B/W : 0.009 lux at F1.3 |
| FPS at max. resolution | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Max. IR distance | 30M | 55M | 55M | 55M | 100M |
| Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Streams | 4 | 4 | 4 | 4 | 4 |
| Sense up + | Supported | Supported | Supported | Supported | Supported |
| 3D noise reduction | Supported | Supported | Supported | Supported | Supported |
| HDR | Up to 140dB | Up to 140dB | Up to 140dB | Up to 140dB | Up to 140dB |
| 2D WDR | - | - | - | - | - |
| IVS Advanced 2.0 | - | - | - | - | - |
| IVS Advanced 2.1 (Optional) | - | - | - | - | - |
| Privacy masking | 4 zones | 4 zones | 4 zones | 4 zones | 16 zones |
| Digital I/O | 1 / 1 | 1 / 1 | 1 / 1 | 1 / 1 | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP68 / IK10 | IP68 / IK10 | IP68 / IK10 | IP67 / IK10 |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) | -40°C – +50°C (-40°F – 122°F) | -40°C – +50°C (-40°F – 122°F) | -40°C – +50°C (-40°F – 122°F) | -40°C – +50°C (-40°F – 122°F) |
| Power supply | DC12V ±10% (Terminal connector) / PoE (IEEE 802.3af) | DC12V ±10% (Terminal connector) / PoE+ (IEEE 802.3at) | DC12V ±10% (Terminal connector) / PoE+ (IEEE 802.3at) | DC12V ±10% (Terminal connector) / PoE+ (IEEE 802.3at) | DC12V ±10% (Terminal connector) / PoE+ (IEEE 802.3at) |
| Power consumption | DC12V, 9.5W / PoE, 10.6W | DC12V,13.2W / PoE+, 14.0W | DC12V,13.1W / PoE+, 14.9W | DC12V,13.1W / PoE+, 14.9W | DC12V, 15.9W / PoE+, 18.3W |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android | iOS, Android | iOS, Android |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| ONVIF | ONVIF Profile S&T&G | ONVIF Profile S&T&G | ONVIF Profile S&T&G | ONVIF Profile S | ONVIF Profile S |
| Others | •Digital zoom & ePTZ •Micro SD / SDHC / SDXC card •P-IRIS supported | •Digital zoom & ePTZ •Micro SD / SDHC / SDXC card •P-IRIS supported | •Digital zoom & ePTZ •Micro SD / SDHC / SDXC card •P-IRIS supported | •Digital zoom & ePTZ •Micro SD / SDHC / SDXC card •P-IRIS supported | •Digital zoom & ePTZ •Micro SD / SDHC / SDXC card •RS-485 supported |
6

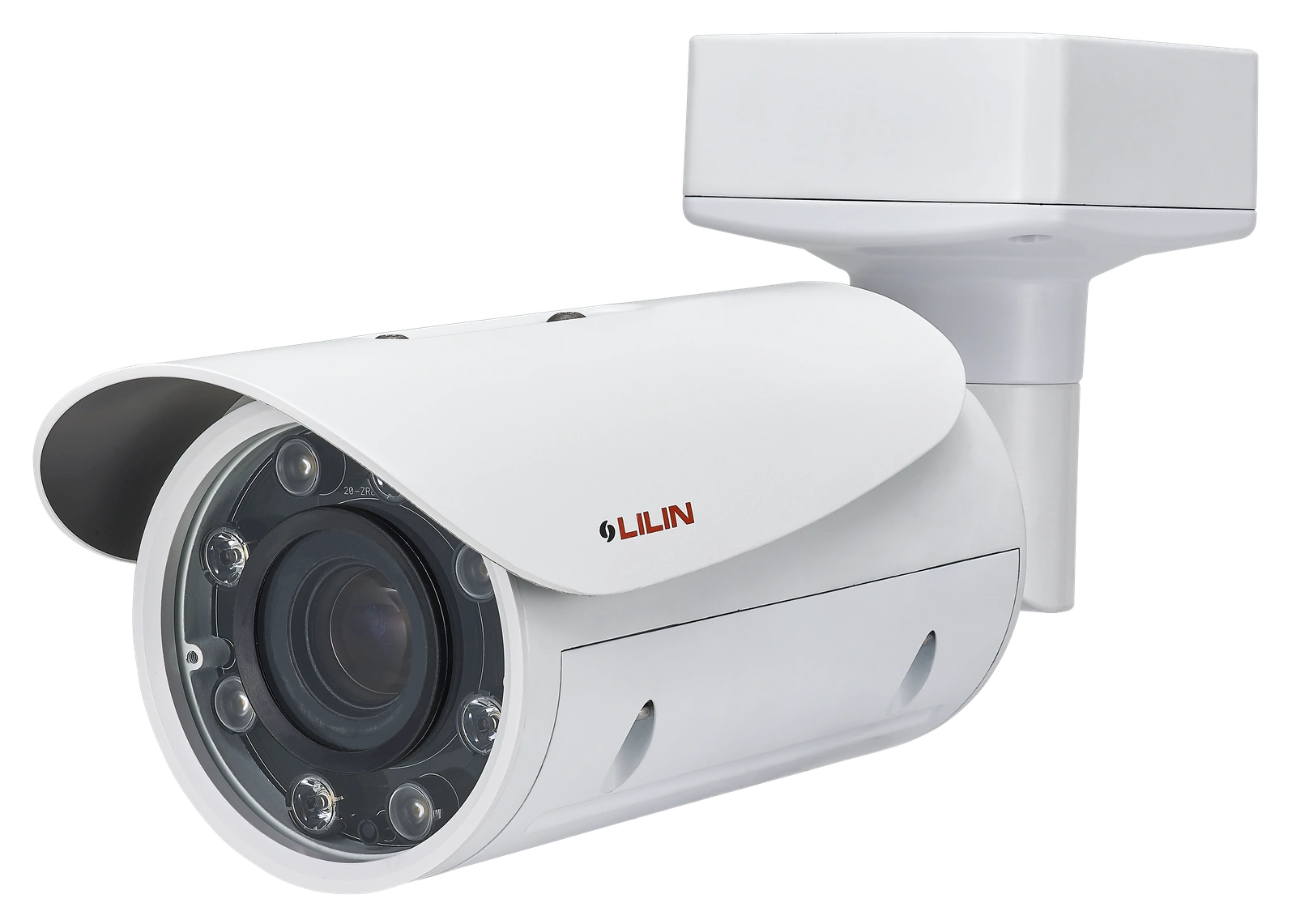

| Z7 4K&5MP H.265 Camera | |
 | |
| Model | Z7R8052EX25 |
|---|---|
| Resolution | 5MP ( D & N ) |
| Focal length | 5.3~132.5mm |
| Aperture | F 1.6(W) - F 43(T) |
| Angle of view (H) | 56.7° (W) - 3.2° (T) |
| Pick up element | 1/2.8" CMOS |
| Effective pixels | 2616 × 1964 |
| Min. illumination | Color : 0.07 Lux at F1.6 B/W : 0.001 Lux at F1.6 0 Lux with IR LED ON |
| FPS at max. resolution | 30 FPS |
| Max. IR distance | 100M |
| Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| Streams | 4 |
| Sense up + | Supported |
| 3D noise reduction | Supported |
| HDR | Up to 140dB |
| 2D WDR | - |
| IVS Advanced 2.0 | - |
| IVS Advanced 2.1 (Optional) | - |
| Privacy masking | 4 zones |
| Digital I/O | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Power supply | DC12V ±10% (Terminal connector) / PoE s(IEEE 802.3at) |
| Power consumption | DC12V, 15.9W / PoE+, 18.3W |
| Mobile phone | iOS, Android |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| ONVIF | ONVIF Profile S&T&G |
| Others | •Digital zoom & ePTZ •Micro SD / SDHC / SDXC card •P-IRIS supported |
7

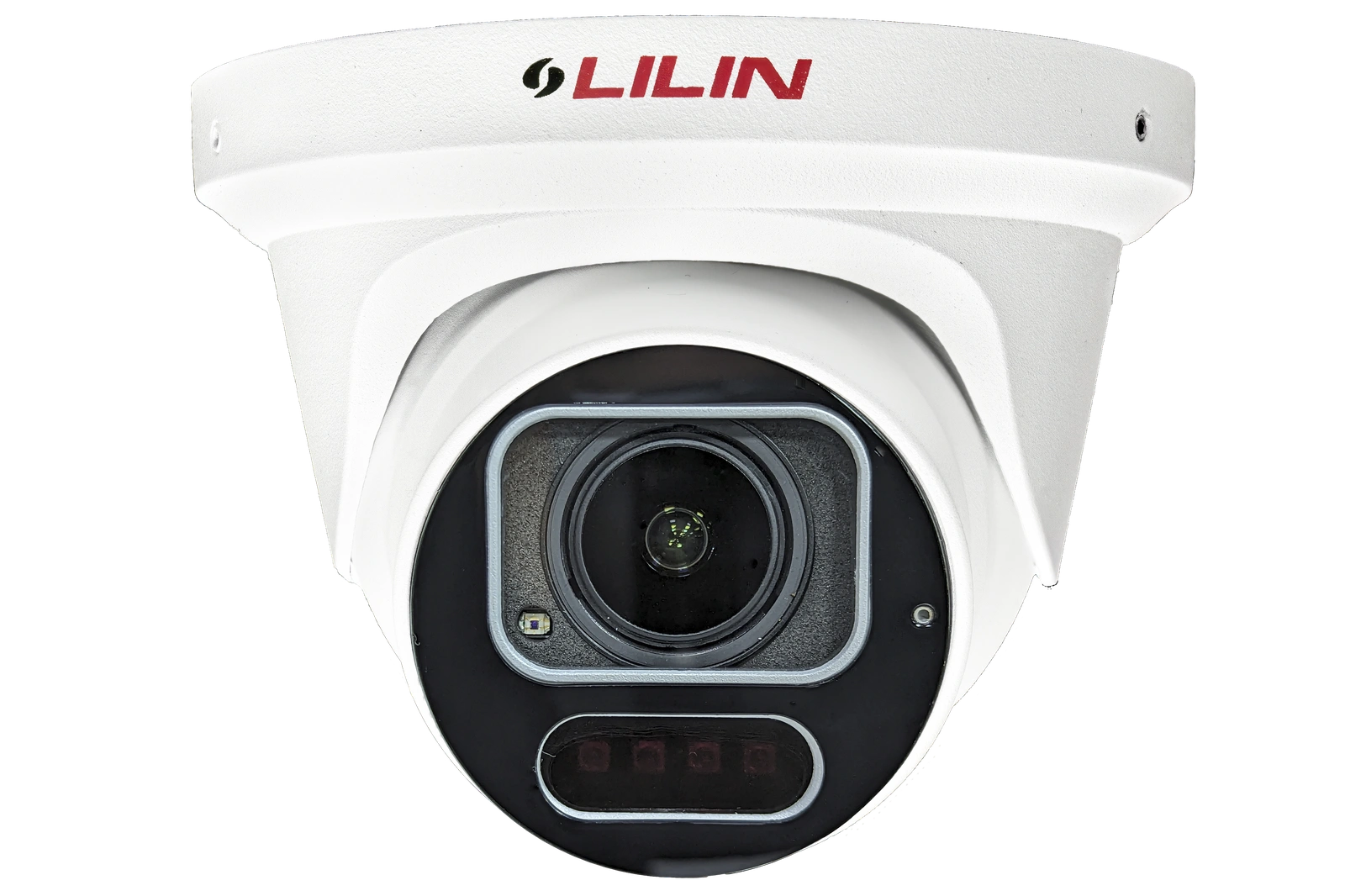

| Z6 5MP H.265 Camera | ||
|  | |
| Model | Z6R6452X3 | Z6R6552X3 |
|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) |
| Focal length | 2.8~12mm | 2.8~12mm |
| Aperture | F1.6 (W) – F2.8 (T) | F1.6 (W) – F2.8 (T) |
| Angle of view (H) | 102.3° (W) – 36.9° (T) | 102.3° (W) – 36.9° (T) |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 2616 × 1964 | 2616 × 1964 |
| Min. illumination | Color: 0.09 Lux at F1.6 ; B/W: 0.02 Lux at F1.6 ; 0 Lux with IR LED ON | Color: 0.09 Lux at F1.6 B/W: 0.02 Lux at F1.6 0 Lux with IR LED ON |
| FPS at max. resolution | 25 FPS | 25 FPS |
| Max. IR distance | 30M | 35M |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Streams | 3 | 3 |
| Sense up + | Supported | Supported |
| 3D noise reduction | Supported | Supported |
| HDR | Up to 140dB | Up to 140dB |
| 2D WDR | Supported | Supported |
| IVS Advanced 2.0 | - | - |
| IVS Advanced 2.1 (Optional) | - | - |
| Privacy masking | 4 zones | 4 zones |
| Digital I/O | 1 / 1 | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 |
| Operating temperature | --30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) |
| Power supply | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power consumption | DC12V, 9.1W / PoE, 10.3W | DC12V, 8.2W / PoE, 9.2W |
| Mobile phone | iOS, Android | iOS, Android |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | One-way Audio, G.711 u-law / AAC, Built-in Microphone |
| ONVIF | ONVIF Profile S , T , G supported | ONVIF Profile S , T , G supported |
| Others | •Micro SD / SDHC / SDXC card •Defog Function | •Micro SD / SDHC / SDXC card •Defog Function |
8
| Z6 5MP H.265 Camera | ||
 | | |
| Model | Z6R8952X3 | Z6R6452X3 |
|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) |
| Focal length | 2.8~12mm | 2.8~12mm |
| Aperture | F1.6 (W) – F2.8 (T) | F1.6 (W) – F2.8 (T) |
| Angle of view (H) | 102.3° (W) – 36.9° (T) | 102.3° (W) – 36.9° (T) |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 2616 × 1964 | 2616 × 1964 |
| Min. illumination | Color: 0.09 Lux at F1.6 B/W: 0.02 Lux at F1.6 0 Lux with IR LED ON | Color: 0.09 Lux at F1.6 B/W: 0.02 Lux at F1.6 0 Lux with IR LED ON |
| FPS at max. resolution | 25 FPS | 25 FPS |
| Max. IR distance | 35M | 30M |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Streams | 3 | 3 |
| Sense up + | Supported | Supported |
| 3D noise reduction | Supported | Supported |
| HDR | Up to 140dB | Up to 140dB |
| 2D WDR | Supported | Supported |
| IVS Advanced 2.0 | - | - |
| IVS Advanced 2.1 (Optional) | - | - |
| Privacy masking | 4 zones | 4 zones |
| Digital I/O | 1 / 1 | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) |
| Power supply | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power consumption | DC12V, 8.5W / POE, 10W | DC12V, 9.1W / PoE, 10.3W |
| Mobile phone | iOS, Android | iOS, Android |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| ONVIF | ONVIF Profile S , T , G supported | ONVIF Profile S , T , G supported |
| Others | •Micro SD / SDHC / SDXC card •Defog Function | •Micro SD / SDHC / SDXC card •Defog Function |
9
| Z6 5MP H.265 Camera | |||
| | | |
| Model | Z6R6552X3 | Z6R8952X3 | Z6R8152X3-P |
|---|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) | 5MP ( D & N ) |
| Focal length | 2.8~12mm | 2.8~12mm | 2.8~12mm |
| Aperture | F1.6 (W) – F2.8 (T) | F1.6 (W) – F2.8 (T) | F1.6 (W) – F3.3 (T) |
| Angle of view (H) | 102.3° (W) – 36.9° (T) | 102.3° (W) – 36.9° (T) | 102.8° (W) – 32° (T) |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 2616 × 1964 | 2616 × 1964 | 2616 × 1964 |
| Min. illumination | Color: 0.09 Lux at F1.6 B/W: 0.02 Lux at F1.6 0 Lux with IR LED ON | Color: 0.09 Lux at F1.6 B/W: 0.02 Lux at F1.6 0 Lux with IR LED ON | Color: 0.1 Lux at F1.6 B/W: 0.03 Lux at F1.6 0 Lux with IR LED ON |
| FPS at max. resolution | 25 FPS | 25 FPS | 25 FPS |
| Max. IR distance | 35M | 35M | 55M |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Streams | 3 | 3 | 3 |
| Sense up + | Supported | Supported | Supported |
| 3D noise reduction | Supported | Supported | Supported |
| HDR | Up to 140dB | Up to 140dB | Up to 140dB |
| 2D WDR | Supported | Supported | Supported |
| IVS Advanced 2.0 | - | - | - |
| IVS Advanced 2.1 (Optional) | - | - | - |
| Privacy masking | 4 zones | 4 zones | 4 zones |
| Digital I/O | 1 / 1 | 1 / 1 | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 | IP68 / IK10 |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) |
| Power supply | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE+ (IEEE 802.3at compliant) |
| Power consumption | DC12V, 8.2W / PoE, 9.2W | DC12V, 8.5W / POE, 10W | DC12V, 14.6W / PoE+, 15.9W |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android |
| Audio capability | One-way Audio, G.711 u-law / AAC, Built-in Microphone | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| ONVIF | ONVIF Profile S , T , G | ONVIF Profile S, T, G | ONVIF Profile S, T, G |
| Others | •Micro SD / SDHC / SDXC card | •Micro SD / SDHC / SDXC card | •Micro SD / SDHC / SDXC card |
10

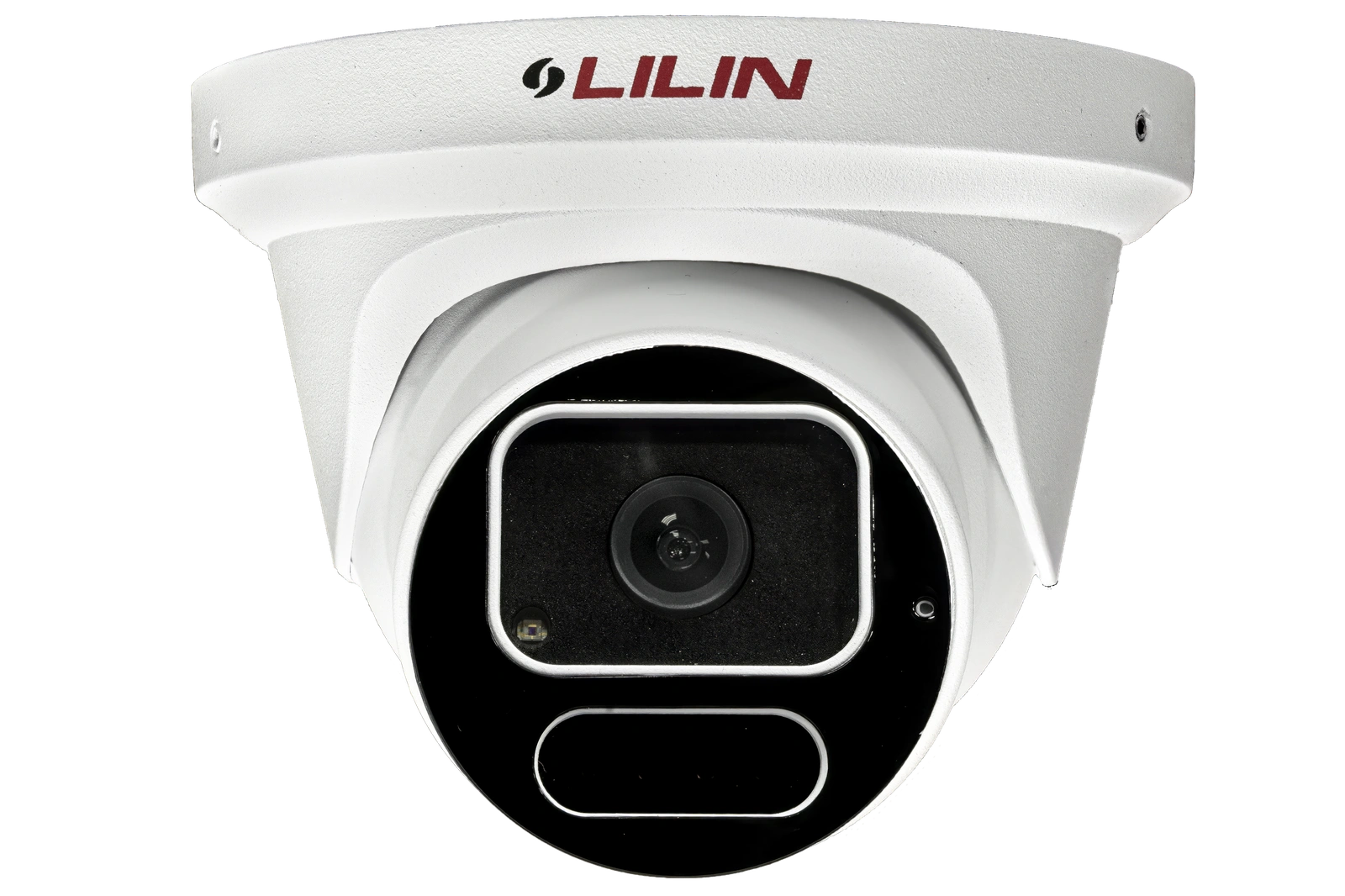

| P6 5MP H.265 Camera | |||
 |  |  | |
| Model | P6R6352E2 | P6R6552E2 | P6R8852E2 |
|---|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) | 5MP ( D & N ) |
| Focal length | 2.8mm | 2.8mm | 2.8mm |
| Aperture | F1.6 | F1.6 | F1.6 |
| Angle of view (H) | 110.3° | 110.3° | 110.3° |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 2616 × 1964 | 2616 × 1964 | 2616 × 1964 |
| Min. illumination | Color: 0.09 Lux at F1.6 B/W: 0.02 Lux at F1.6 0 Lux with IR LED ON | Color: 0.09 Lux at F1.6 B/W: 0.02 Lux at F1.6 0 Lux with IR LED ON | Color: 0.09 Lux at F1.6 B/W: 0.02 Lux at F1.6 0 Lux with IR LED ON |
| FPS at max. resolution | 25 FPS | 25 FPS | 25 FPS |
| Max. IR distance | 30M | 35M | 35M |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Streams | 3 | 3 | 3 |
| Sense up + | Supported | Supported | Supported |
| 3D noise reduction | Supported | Supported | Supported |
| HDR | Up to 140dB | Up to 140dB | Up to 140dB |
| 2D WDR | Supported | Supported | Supported |
| IVS Advanced 2.0 | - | - | - |
| IVS Advanced 2.1 (Optional) | - | - | - |
| Privacy masking | 4 zones | 4 zones | 4 zones |
| Digital I/O | 1 / 1 | 1 / 1 | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 | IP67 / IK10 |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) |
| Power supply | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power consumption | DC12V, 7.5W / PoE, 8.5W | DC12V, 7.4W / PoE, 8.2W | DC12V, 7.9W / POE, 8.9W |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | One-way Audio, G.711 u-law / AAC, Built-in Microphone | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| ONVIF | ONVIF Profile S, T, G | ONVIF Profile S, T, G | ONVIF Profile S, T, G |
11
| V1R Camera | ||||
 |  |  | ||
| Model | V1R4452AE2 | V1R4552AX3 | V1R6052AE2 | |
|---|---|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) | 5MP ( D & N ) | |
| Focal length | 2.8mm | 2.8~12mm | 2.8mm | |
| Aperture | F2.2 | F1.6 (W) – F3.1 (T) | F2.2 | |
| Angle of view (H) | 108.9° | 107.6° | 108.9° | |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | |
| Effective pixels | 2616 × 1964 | 2616 × 1964 | 2616 × 1964 | |
| Min. illumination | Color: 0.16 Lux at F2.2 B/W: 0.02 Lux at F2.2 0 Lux with IR LED ON | Color: 0.1 Lux at F1.6 B/W: 0.01 Lux at F1.6 0 Lux with IR LED ON | Color: 0.16 Lux at F2.2 B/W: 0.02 Lux at F2.2 0 Lux with IR LED ON | |
| FPS at max. resolution | 25 FPS | 25 FPS | 25 FPS | |
| Max. IR distance | 30M | 30M | 30M | |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | |
| Streams | 3 | 3 | 3 | |
| Sense up + | Supported | Supported | Supported | |
| 3D noise reduction | Supported | Supported | Supported | |
| HDR | Up to 120dB | Up to 120dB | Up to 120dB | |
| 2D WDR | Supported | Supported | Supported | |
| IVS Advanced 2.0 | - | - | -- | |
| IVS Advanced 2.1 (Optional) | - | - | - | |
| Privacy masking | 4 zones | 4 zones | 4 zones | |
| Digital I/O | 1 / 1 | 1 / 1 | 1 / 1 | |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 | IP66 / IK10 | |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | |
| Power supply | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) | |
| Power consumption | POE, 5.7W | POE, 9.2W | POE, 7.3W | |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android | |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, Built-in Microphone | Two-way Audio, G.711 u-law / PCM / AAC, Built-in Microphone | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | |
| ONVIF | ONVIF Profile S, T, G | ONVIF Profile S, T, G | ONVIF Profile S, T, G | |
12
| V1R Camera | ||||
|  |  | ||

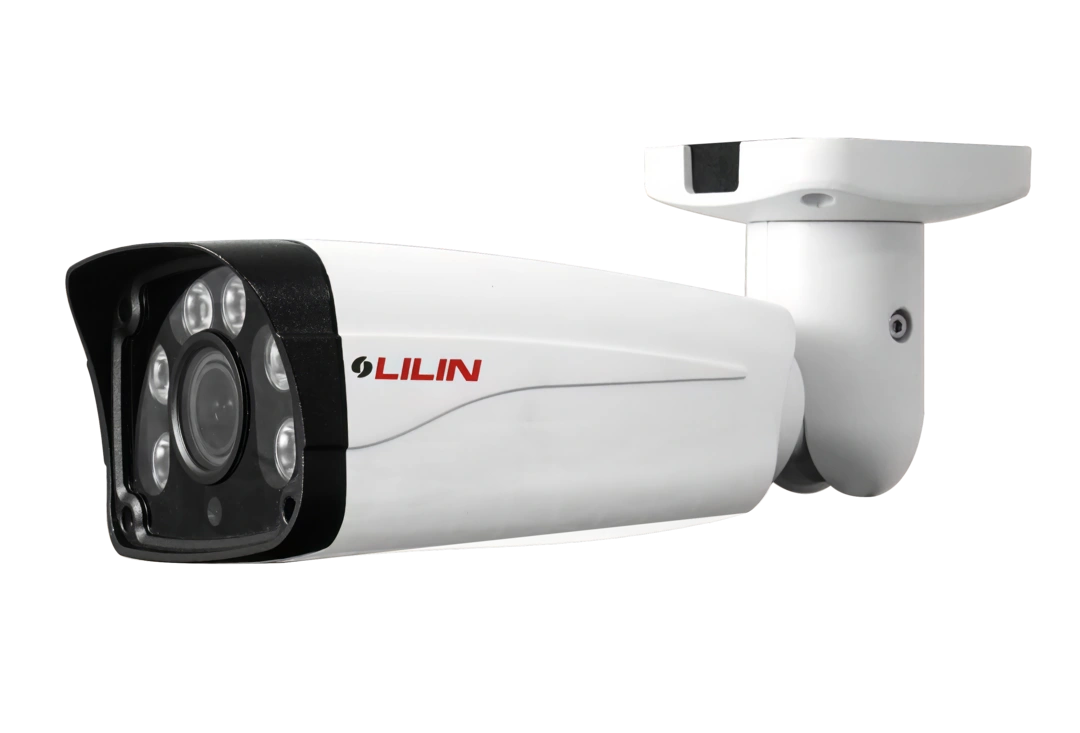

| Model | V1R6052AX3 | V1R9452AE2 | V1R9552AX3 | |
|---|---|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) | 5MP ( D & N ) | |
| Focal length | 2.8~12mm | 2.8mm | 2.8~12mm | |
| Aperture | F1.6 (W) – F3.1 (T) | F2.2 | F1.6 (W) – F3.1 (T) | |
| Angle of view (H) | 107.6° | 108.9° | 107.6° | |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | |
| Effective pixels | 2616 × 1964 | 2616 × 1964 | 2616 × 1964 | |
| Min. illumination | Color: 0.1 Lux at F1.6 B/W: 0.01 Lux at F1.6 0 Lux with IR LED ON | Color: 0.16 Lux at F2.2 B/W: 0.02 Lux at F2.2 0 Lux with IR LED ON | Color: 0.1 Lux at F1.6 B/W: 0.01 Lux at F1.6 0 Lux with IR LED ON | |
| FPS at max. resolution | 25 FPS | 25 FPS | 25 FPS | |
| Max. IR distance | 30M | 35M | 55M | |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | |
| Streams | 3 | 3 | 3 | |
| Sense up + | Supported | Supported | Supported | |
| 3D noise reduction | Supported | Supported | Supported | |
| HDR | Up to 120dB | Up to 120dB | Up to 120dB | |
| 2D WDR | Supported | Supported | Supported | |
| IVS Advanced 2.0 | - | - | - | |
| IVS Advanced 2.1 (Optional) | - | - | - | |
| Privacy masking | 4 zones | 4 zones | 4 zones | |
| Digital I/O | 1 / 1 | 1 / 1 | 1 / 1 | |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | |
| IP rating / Vandal resistant rating | IP66 / IK10 | IP67 / IK10 | IP67 / IK10 | |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | |
| Power supply | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) | |
| Power consumption | POE, 8.4W | POE, 6.9W | POE, 9.9W | |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android | |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | |
| ONVIF | ONVIF Profile S, T, G | ONVIF Profile S, T, G | ONVIF Profile S, T, G | |
13
| V1R Camera | ||||
 |  |  | ||

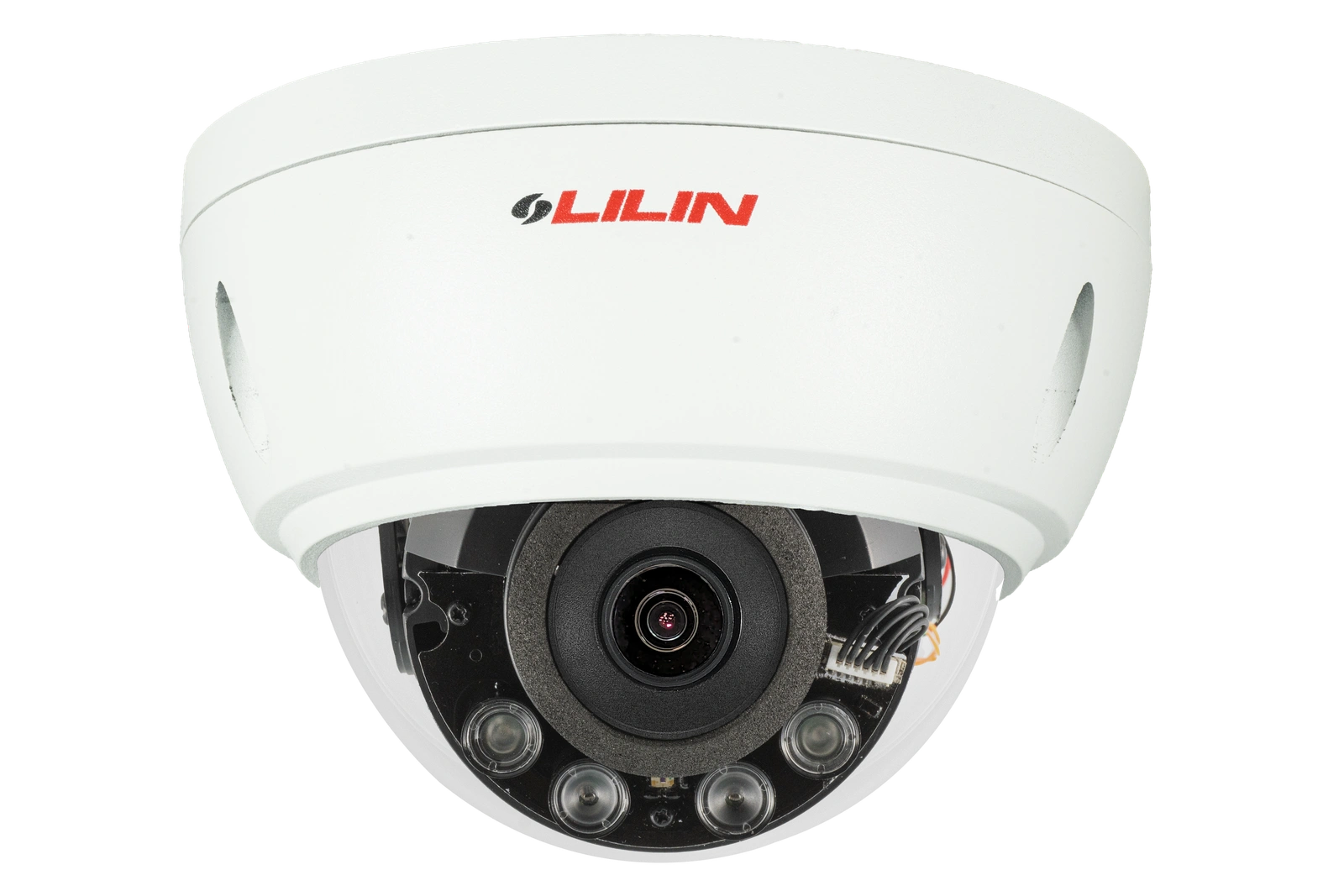

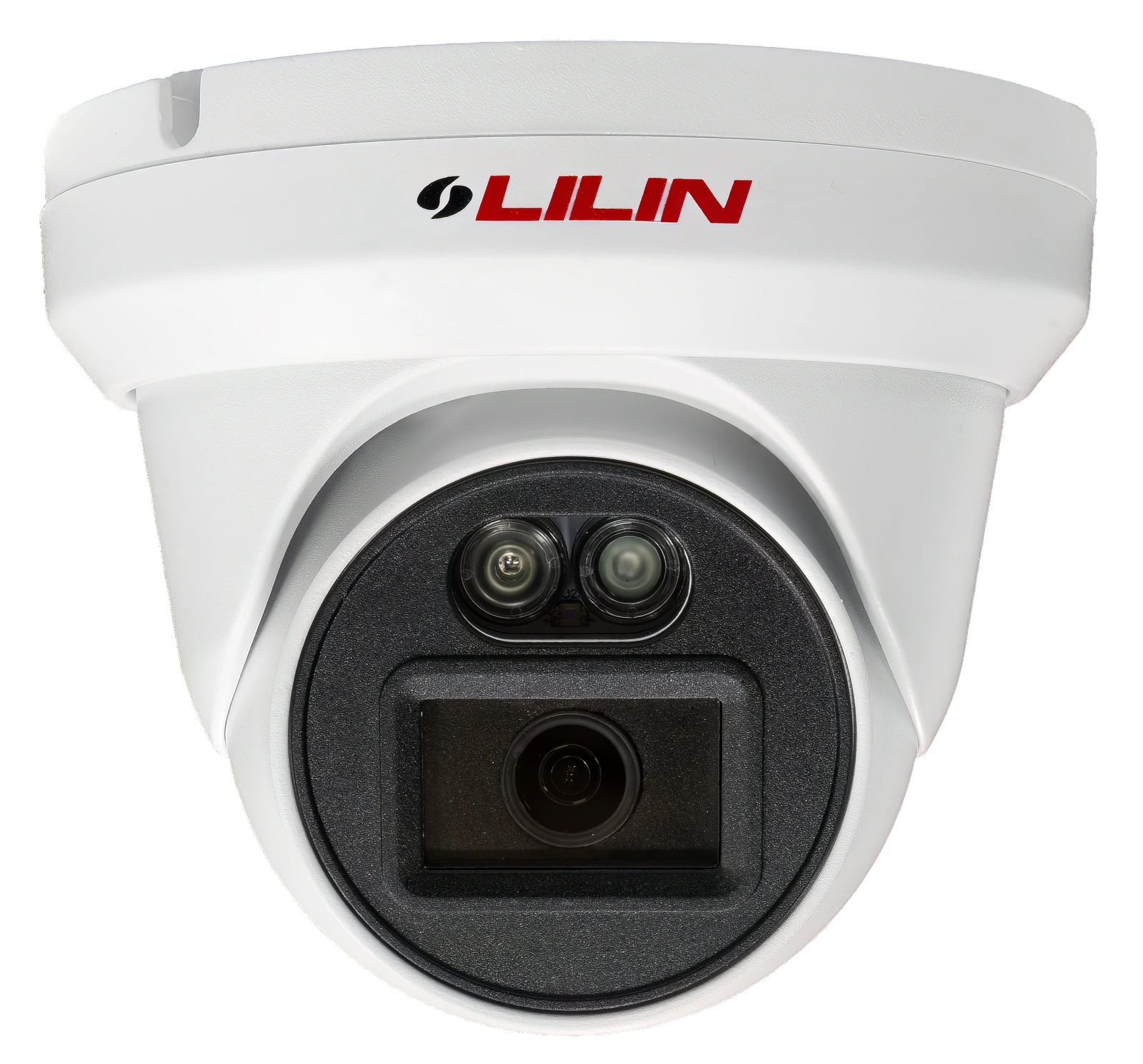

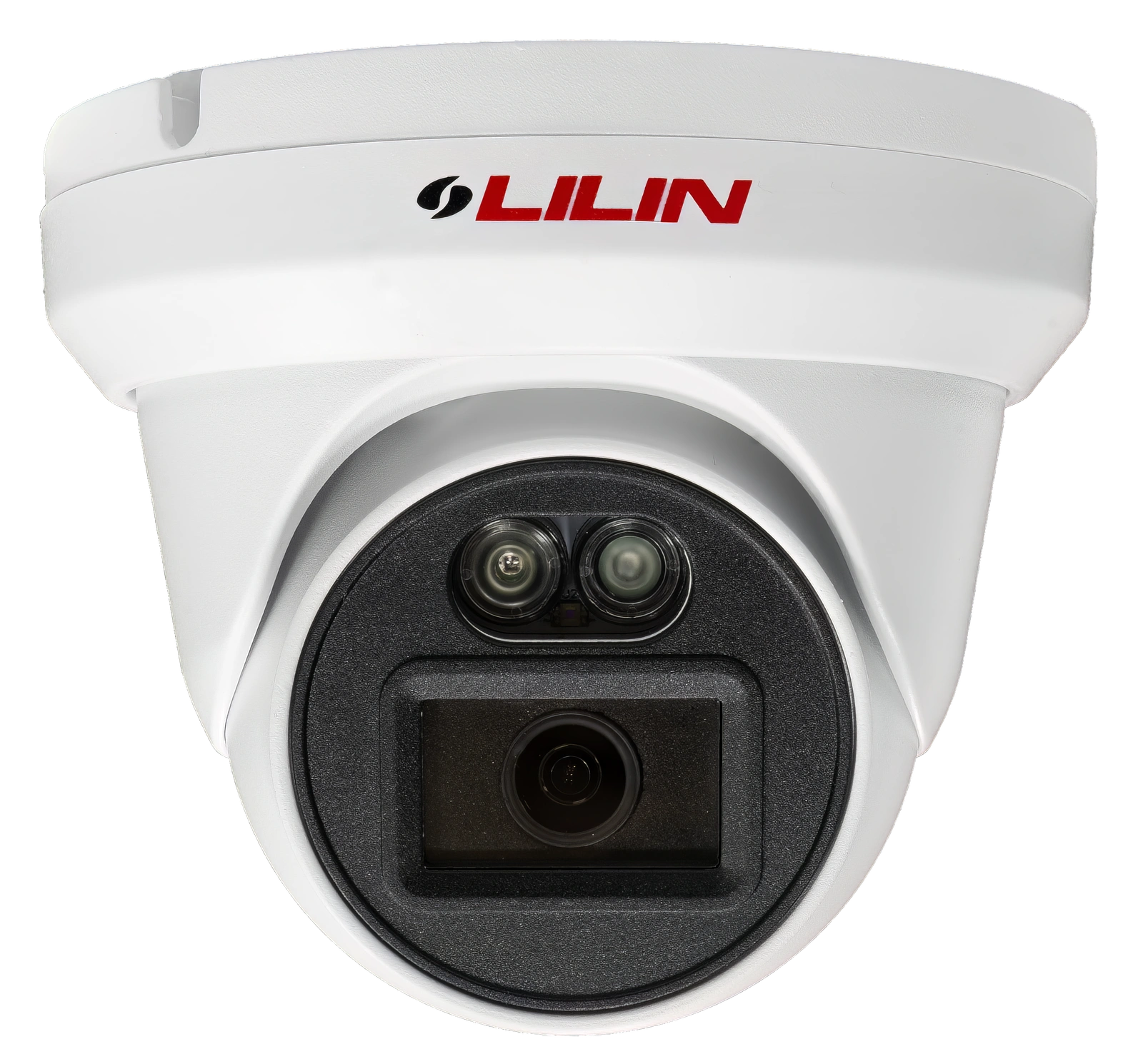

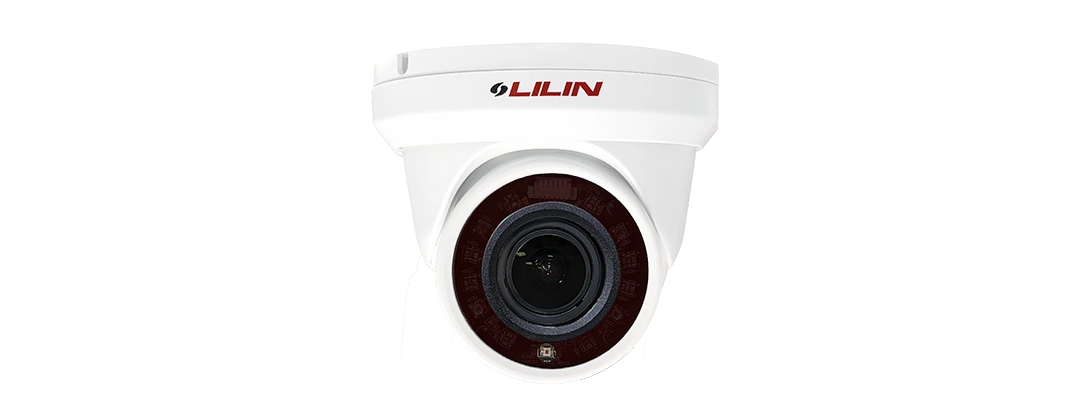

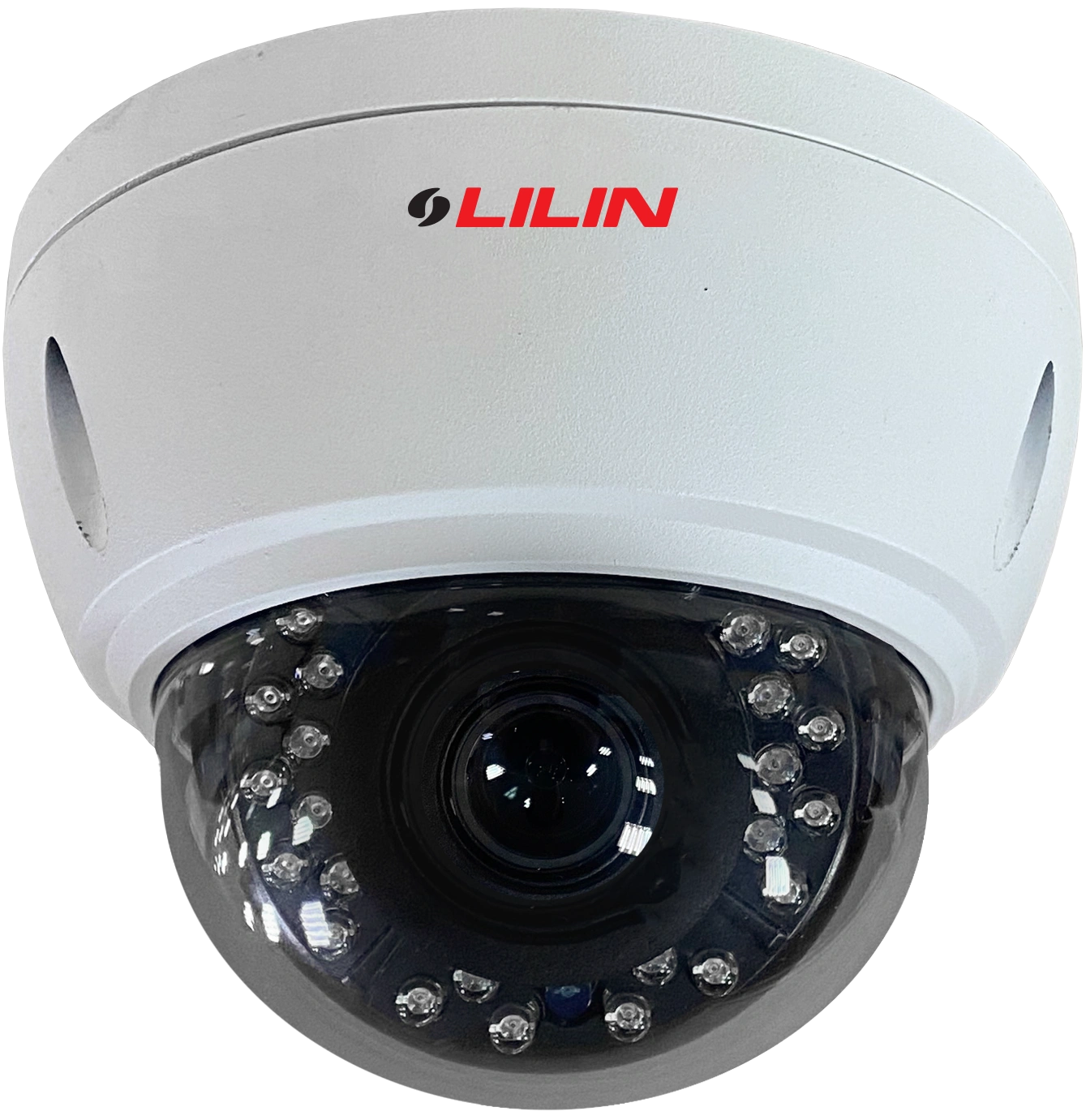

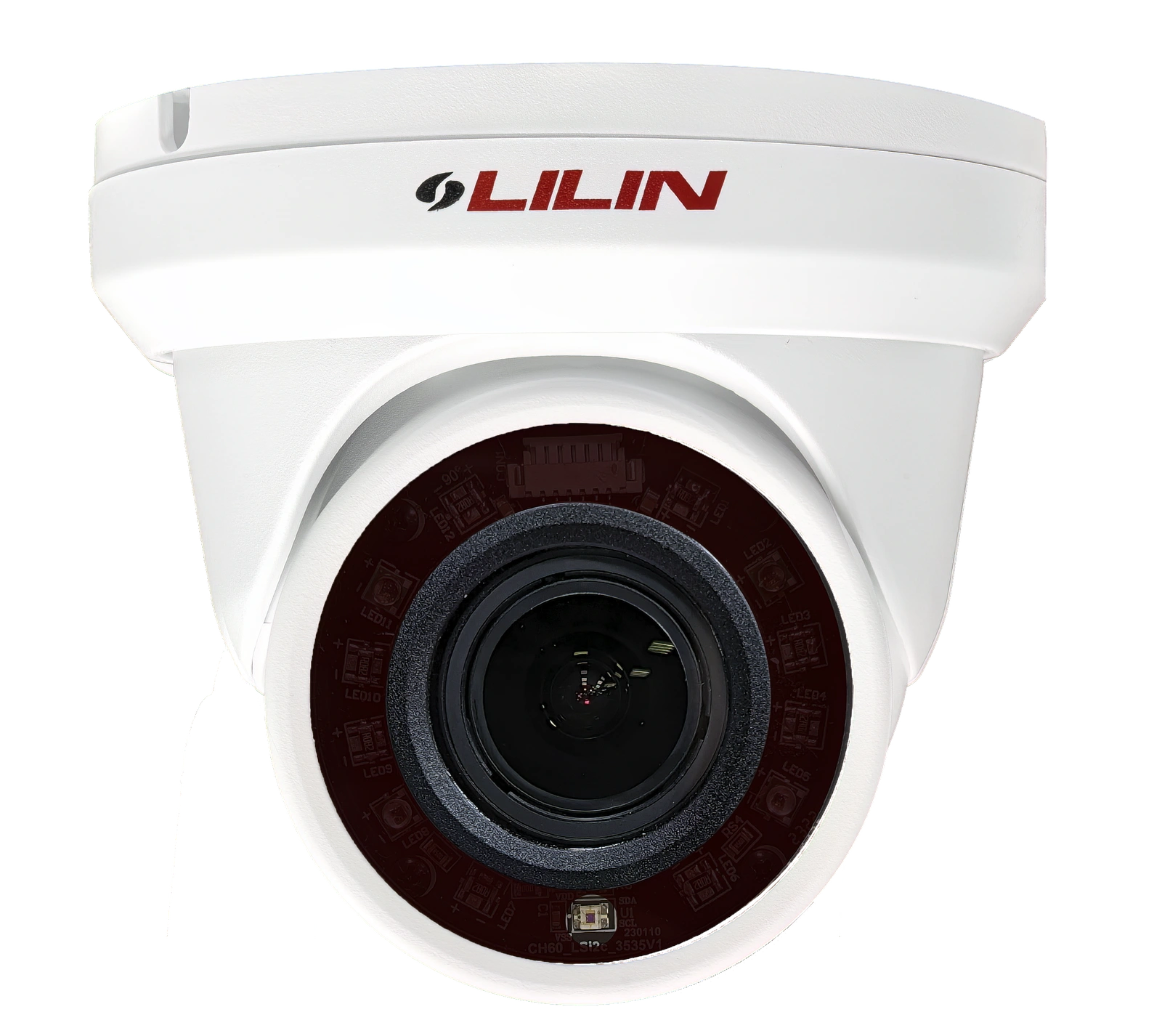

| Model | V1R4452E2 | V1R4552X3 | V1R6052E2 | |
|---|---|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) | 5MP ( D & N ) | |
| Focal length | 2.8mm | 2.8~12mm | 2.8mm | |
| Aperture | F2.2 | F1.6 (W) – F3.1 (T) | F2.2 | |
| Angle of view (H) | 108.9° | 107.6° | 108.9° | |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | |
| Effective pixels | 2616 × 1964 | 2616 × 1964 | 2616 × 1964 | |
| Min. illumination | Color: 0.16 Lux at F2.2 B/W: 0.02 Lux at F2.2 0 Lux with IR LED ON | Color: 0.1 Lux at F1.6 B/W: 0.01 Lux at F1.6 0 Lux with IR LED ON | Color: 0.16 Lux at F2.2 B/W: 0.02 Lux at F2.2 0 Lux with IR LED ON | |
| FPS at max. resolution | 25 FPS | 25 FPS | 25 FPS | |
| Max. IR distance | 30M | 30M | 30M | |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | |
| Streams | 3 | 3 | 3 | |
| Sense up + | Supported | Supported | Supported | |
| 3D noise reduction | Supported | Supported | Supported | |
| HDR | Up to 120dB | Up to 120dB | Up to 120dB | |
| 2D WDR | Supported | Supported | Supported | |
| IVS Advanced 2.0 | - | - | - | |
| IVS Advanced 2.1 (Optional) | - | - | - | |
| Privacy masking | 4 zones | 4 zones | 4 zones | |
| Digital I/O | - | - | - | |
| Event triggers | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 | IP66 / IK10 | |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | |
| Power supply | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) | |
| Power consumption | POE, 5.7W | POE, 9.2W | POE, 7.3W | |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android | |
| Audio capability | - | - | - | |
| ONVIF | ONVIF Profile S, T, G | ONVIF Profile S, T, G | ONVIF Profile S, T, G | |
14
| V1R Camera | ||||
 |  |  | ||

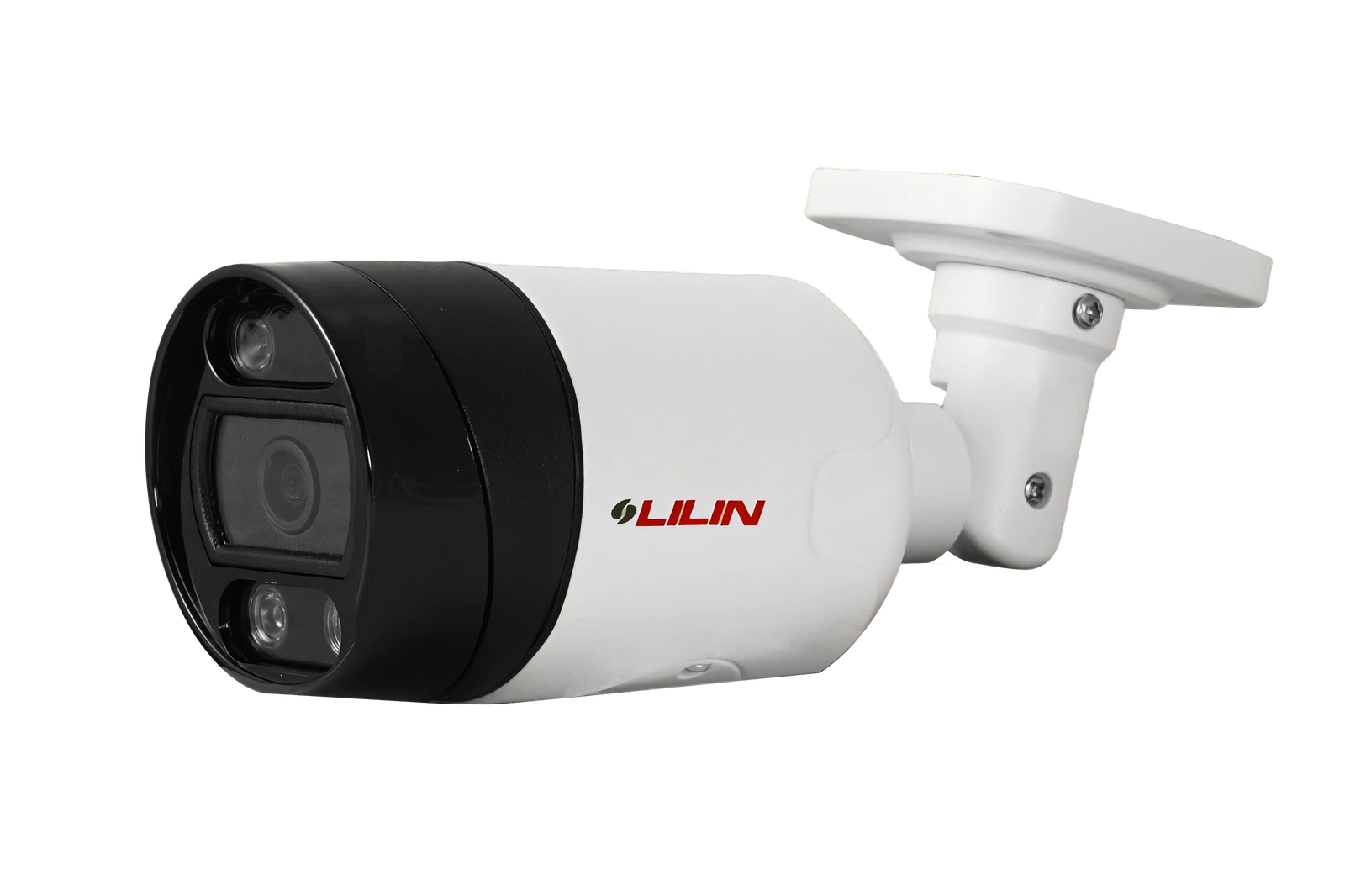

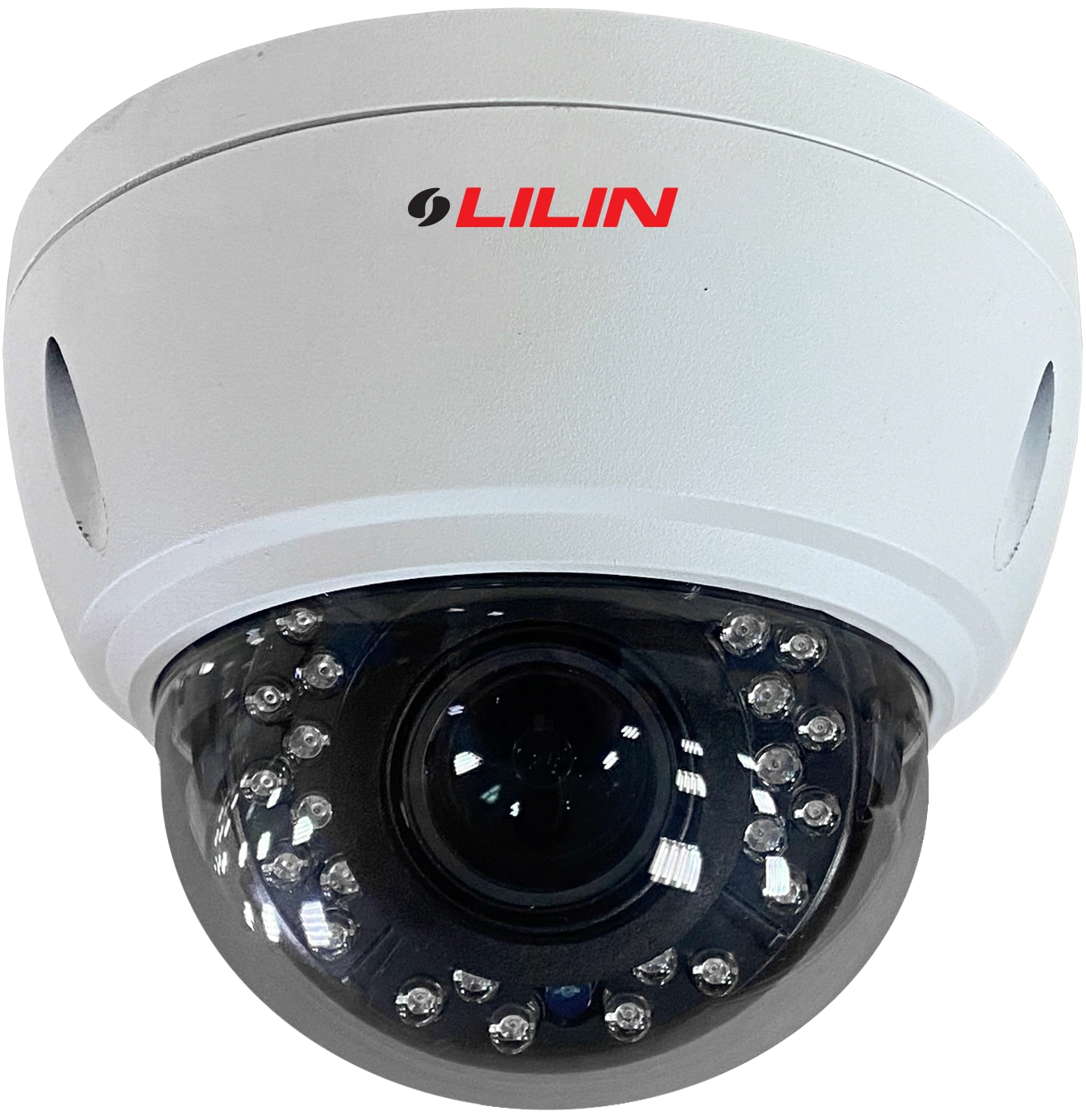

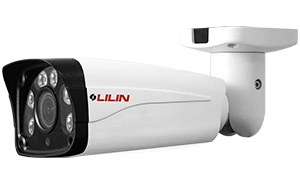

| Model | V1R6052X3 | V1R9452E2 | V1R9552X3 | |
|---|---|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) | 5MP ( D & N ) | |
| Focal length | 2.8~12mm | 2.8mm | 2.8~12mm | |
| Aperture | F1.6 (W) – F3.1 (T) | F2.2 | F1.6 (W) – F3.1 (T) | |
| Angle of view (H) | 107.6° | 108.9° | 107.6° | |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | |
| Effective pixels | 2616 × 1964 | 2616 × 1964 | 2616 × 1964 | |
| Min. illumination | Color: 0.1 Lux at F1.6 B/W: 0.01 Lux at F1.6 0 Lux with IR LED ON | Color: 0.16 Lux at F2.2 B/W: 0.02 Lux at F2.2 0 Lux with IR LED ON | Color: 0.1 Lux at F1.6 B/W: 0.01 Lux at F1.6 0 Lux with IR LED ON | |
| FPS at max. resolution | 25 FPS | 25 FPS | 25 FPS | |
| Max. IR distance | 30M | 35M | 55M | |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | |
| Streams | 3 | 3 | 3 | |
| Sense up + | Supported | Supported | Supported | |
| 3D noise reduction | Supported | Supported | Supported | |
| HDR | Up to 120dB | Up to 120dB | Up to 120dB | |
| 2D WDR | Supported | Supported | Supported | |
| IVS Advanced 2.0 | - | - | - | |
| IVS Advanced 2.1 (Optional) | - | - | - | |
| Privacy masking | 4 zones | 4 zones | 4 zones | |
| Digital I/O | - | - | - | |
| Event triggers | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata | |
| IP rating / Vandal resistant rating | IP66 / IK10 | IP67 / IK10 | IP67 / IK10 | |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | |
| Power supply | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) | |
| Power consumption | POE, 8.4W | POE, 6.9W | POE, 9.9W | |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android | |
| Audio capability | - | - | - | |
| ONVIF | ONVIF Profile S, T, G | ONVIF Profile S, T, G | ONVIF Profile S, T, G | |
15
FULL COLOR
AT NIGHT
Preventing crime in low-light conditions is madepossible with LILIN dual-light cameras.
Through AI recognition, these cameras detectintrusions and activate white LED lights, providingclear, full-color images at night.
The bright LED light serves as both illumination anda deterrent, signaling surveillance and enhancingvisibility for authorized personnel.
EDGE AI
Image Recognition
SWITCH
AI Color Mode
WHITE LIGHT
DETERRENT
Normal Time
Triggered
Displaying full-color images at night is challenging. Typically,grayscale images are obtained using red light IR LEDs, providingbrightness but lacking true colors. Additionally, continuouscolor display can be resource-intensive, especially in staticenvironments, where black and white images are more efficientfor transmission and storage.
Dual-source cameras address both issues. They primarily displayand record in black and white, conserving resources. Whendetecting intrusions, they activate white LED lights to restorecolor images and illuminate the area, offering practicality andefficiency.
White Light
Untriggered
White Light
Triggered
| V1W Camera | ||
 | | |

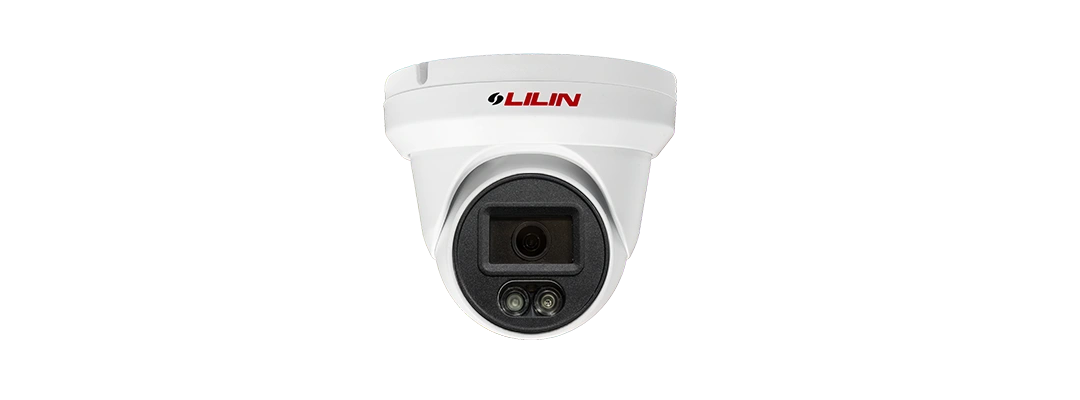

| Model | V1W4452E2 | V1W4552X3 |
|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) |
| Focal length | 2.8mm | 2.8~12mm |
| Aperture | F1.3 | F1.6 (W) – F3.1 (T) |
| Angle of view (H) | 111.5° | 107.6° |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 2616 × 1964 | 2616 × 1964 |
| Min. illumination | Color : 0.06 Lux at F1.3 B/W : 0.007 Lux at F1.3 0 Lux with Light LED ON | Color: 0.1 Lux at F1.6 B/W: 0.01 Lux at F1.6 0 Lux with Light LED ON |
| FPS at max. resolution | 25 FPS | 25 FPS |
| Max. IR distance | 15M | 30M |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Streams | 3 | 3 |
| Sense up + | Supported | Supported |
| 3D noise reduction | Supported | Supported |
| HDR | Up to 120dB | Up to 120dB |
| 2D WDR | Supported | Supported |
| IVS Advanced 2.0 | - | - |
| IVS Advanced 2.1 (Optional) | - | - |
| Privacy masking | 4 zones | 4 zones |
| Digital I/O | - | - |
| Event triggers | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) |
| Power supply | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) |
| Power consumption | POE, 5.7W | POE, 8.0W |
| Mobile phone | iOS, Android | iOS, Android |
| Audio capability | - | - |
| ONVIF | ONVIF Profile S, T, G | ONVIF Profile S, T, G |
18
| V1W Camera | ||
| | |
| Model | V1W9452E2 | V1W9552X3 |
|---|---|---|
| Resolution | 5MP ( D & N ) | 5MP ( D & N ) |
| Focal length | 2.8mm | 2.8~12mm |
| Aperture | F1.3 | F1.6 (W) – F3.1 (T) |
| Angle of view (H) | 111.5° | 107.6° |
| Pick up element | 1/2.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 2616 × 1964 | 2616 × 1964 |
| Min. illumination | Color : 0.06 Lux at F1.3 B/W : 0.007 Lux at F1.3 0 Lux with Light LED ON | Color: 0.1 Lux at F1.6 B/W: 0.01 Lux at F1.6 0 Lux with Light LED ON |
| FPS at max. resolution | 25 FPS | 25 FPS |
| Max. IR distance | 30M | 35M |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Streams | 3 | 3 |
| Sense up + | Supported | Supported |
| 3D noise reduction | Supported | Supported |
| HDR | Up to 120dB | Up to 120dB |
| 2D WDR | Supported | Supported |
| IVS Advanced 2.0 | - | - |
| IVS Advanced 2.1 (Optional) | - | - |
| Privacy masking | 4 zones | 4 zones |
| Digital I/O | - | - |
| Event triggers | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) |
| Power supply | PoE (IEEE 802.3af compliant) | PoE (IEEE 802.3af compliant) |
| Power consumption | POE, 6.9W | POE, 9.7W |
| Mobile phone | iOS, Android | iOS, Android |
| Audio capability | - | - |
| ONVIF | ONVIF Profile S, T, G | ONVIF Profile S, T, G |
19
| Z6W H.265 Camera | |||
 |  | | |

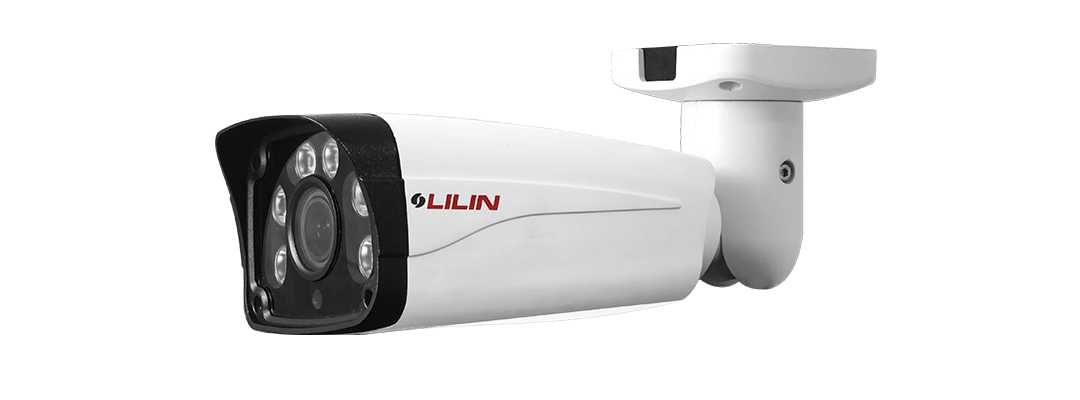

| Model | Z6W9582X3 | Z6W4582X3 | Z6W9552X3 |
|---|---|---|---|
| Resolution | 8MP ( D & N ) | 8MP ( D & N ) | 5MP ( D & N ) |
| Focal length | 2.8~12mm | 2.8~12mm | 2.8~12mm |
| Aperture | F1.4 (W) – F2.2 (T) | F1.4 (W) – F2.2 (T) | F1.4 (W) – F2.2 (T) |
| Angle of view (H) | 109.8° (W) – 46.2° (T) (H) , 57.2° (W) – 25.9° (T) (V) , 126.3° (W) – 53° (T) (D) | 109.8° (W) – 46.2° (T) (H) , 57.2° (W) – 25.9° (T) (V) , 126.3° (W) – 53° (T) (D) | 109.8° (W) – 46.2° (T) (H) , 57.2° (W) – 25.9° (T) (V) , 126.3° (W) – 53° (T) (D) |
| Pick up element | 1/1.8" CMOS | 1/1.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 3856 (H) × 2176(V) = 8,390,656 (Pixels) | 3856 (H) × 2176(V) = 8,390,656 (Pixels) | 2608 (H) × 1964(V) = 5,122,112 (Pixels) |
| Min. illumination | Color: 0.01 Lux at F1.35 ; B/W: 0.005 Lux at F1.35 ; 0 Lux with Light LED ON | Color: 0.01 Lux at F1.35 ; B/W: 0.005 Lux at F1.35 ; 0 Lux with Light LED ON | Color: 0.08 Lux at F1.6 ; B/W: 0.01 Lux at F1.6 ; 0 Lux with IR LED ON |
| FPS at max. resolution | 20~30 FPS | 20~30 FPS | 25~30 FPS |
| Max. IR distance | 45~50M | 45~50M | 40~50M |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Streams | 3 | 3 | 3 |
| Sense up + | Supported | Supported | Supported |
| 3D noise reduction | Supported | Supported | Supported |
| HDR | Up to 140dB | Up to 140dB | Up to 140dB |
| 2D WDR | Supported | Supported | Supported |
| IVS Advanced 2.0 | - | - | - |
| IVS Advanced 2.1 (Optional) | - | - | - |
| Privacy masking | 4 zones | 4 zones | 4 zones |
| Digital I/O | 1 / 1 | 1 / 1 | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 | IP67 / IK10 |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) |
| Power supply | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE+ (IEEE 802.3at compliant) |
| Power consumption | DC12V, 8.7W / PoE, 10.1W | DC12V, 8.7W / PoE, 10.1W | DC12V, 8.9W / PoE+, 10.3W |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| ONVIF | ONVIF Profile S , T , G | ONVIF Profile S , T , G | ONVIF Profile S, T, G |
| Others | •Micro SD / SDHC / SDXC card | •Micro SD / SDHC / SDXC card | •Micro SD / SDHC / SDXC card |
20

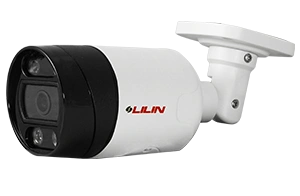

| P6W H.265 Camera | |||
 |  | | |
| Model | P6W4482E2 | P6W9482E2 | P6W9452E2 |
|---|---|---|---|
| Resolution | 8MP ( D & N ) | 8MP ( D & N ) | 5MP ( D & N ) |
| Focal length | 2.8mm | 2.8mm | 2.8mm |
| Aperture | F1.1 | F1.1 | F1.3 |
| Angle of view (H) | 108.7° (H) , 58° (V) , 129.4° (D) | 108.7° (H) , 58° (V) , 129.4° (D) | 98° (H) , 71.7° (V) , 127.9°(D) |
| Pick up element | 1/1.8" CMOS | 1/1.8" CMOS | 1/2.8" CMOS |
| Effective pixels | 3856 (H) × 2176(V) = 8,390,656 (Pixels) | 3856 (H) × 2176(V) = 8,390,656 (Pixels) | 2608 (H) × 1964(V) = 5,122,112 (Pixels) |
| Min. illumination | Color : 0.008 Lux at F1.07 ; B/W : 0.004 Lux at F1.07 ; 0 Lux with Light LED ON | Color : 0.008 Lux at F1.07 ; B/W : 0.004 Lux at F1.07 ; 0 Lux with Light LED ON | Color : 0.06 Lux at F1.3 ; B/W : 0.01 Lux at F1.3 ; 0 Lux with Light LED ON |
| FPS at max. resolution | 20~30 FPS | 25~30 FPS | 25~30 FPS |
| Max. IR distance | 20~30M | 30~40M | 30~40M |
| Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Streams | 3 | 3 | 3 |
| Sense up + | Supported | Supported | Supported |
| 3D noise reduction | Supported | Supported | Supported |
| HDR | Up to 140dB | Up to 140dB | Up to 140dB |
| 2D WDR | Supported | Supported | Supported |
| IVS Advanced 2.0 | - | - | - |
| IVS Advanced 2.1 (Optional) | - | - | - |
| Privacy masking | 4 zones | 4 zones | 4 zones |
| Digital I/O | 1 / 1 | 1 / 1 | 1 / 1 |
| Event triggers | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata | Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata |
| IP rating / Vandal resistant rating | IP67 / IK10 | IP67 / IK10 | IP67 / IK10 |
| Operating temperature | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) | -30°C – +50°C (-22°F – 122°F) |
| Power supply | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE (IEEE 802.3af compliant) | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power consumption | DC12V, 7.5W / PoE, 8.5W | DC12V, 7.5W / PoE, 8.5W | DC12V, 6.3W / POE, 7.7W |
| Mobile phone | iOS, Android | iOS, Android | iOS, Android |
| Audio capability | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required | Two-way Audio, G.711 u-law / PCM / AAC, External Microphone Required |
| ONVIF | ONVIF Profile S, T, G | ONVIF Profile S, T, G | ONVIF Profile S, T, G |
21
NURSING
HOME
SOLUTION
EDGE AI
Image Recognition
3D
Depth Sensing
LIGHTWEIGHT
Resource Usage
ToF (Time of Flight) technology measures the flight time of light pulses.
When a light pulse is emitted from the camera and reflects off anobject, spatial information is calculated based on the time it takes usingmathematical formulas.
Because ToF cameras capture non-visible light, they can operate incompletely dark environments. This makes them suitable for light-sensitive environments like warehouses (where items may degrade withexposure to light) or indoor spaces where lights are kept off for energyconservation.
ToF cameras offer high privacy, making them versatile beyond healthcareapplications. For example, in confidential meetings, participants' lipmovements are not easily discernible, safeguarding the confidentialityof discussions. Additionally, sensitive information on objects can beobscured.
What's ToF?
MAKE
PRIVACY
FIRST
In sensitive environments such as healthcare facilities oreldercare, prioritizing detection over surveillance is crucial.
Traditional high-resolution cameras, while offering excellentimage quality, may not be suitable due to privacy concernsarising from capturing detailed facial and physiological features.Moreover, the resource-intensive analysis of high-resolutionimages can lead to delayed event responses.
LILIN's ToF (Time of Flight) cameras offer an optimal solution.By capturing object depth rather than fine details, they presentimages as color blocks, requiring lower resolution and imposingminimal computational burden for swift event responses.
For example, in hospital settings, ToF cameras can promptlydetect if a patient appears unsteady while walking and alertcaregivers accordingly.
ToF Camera
Normal Camera

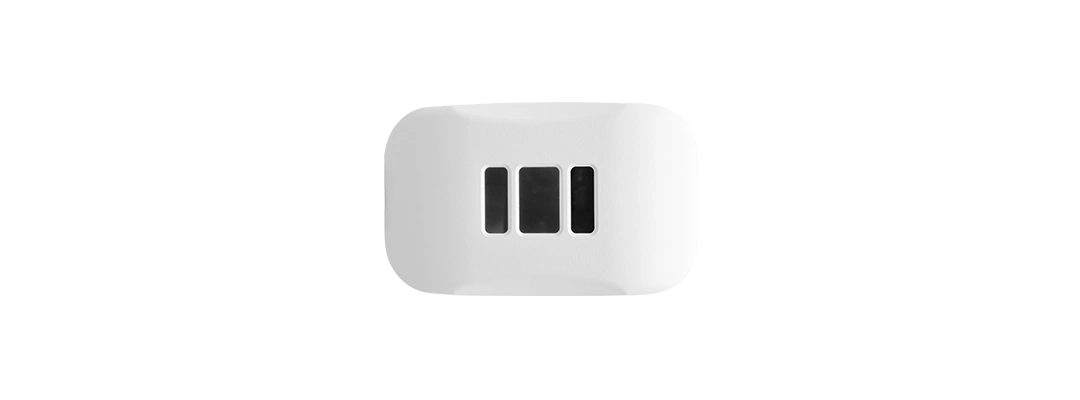

| ToF Camera | |
 | |
| Model | DS362 |
|---|---|
| Angle of View | 62.4⁰ (H) x 47.2⁰ (V) x 77.2⁰ (D) |
| Lens Aperture | F1.2 |
| SoC | CV22S66 |
| Pick Up Element | 1/4.5" Sony DepthSense® IMX570 |
| Maximum Frame Rate | 15fps |
| Effective Pixels | 640 (H) x 480 (V) = 307,200 (Pixels) |
| Shutter Type | Global |
| IP Rating | IP66 |
| Vandal Resistant Rating | IK10 |
| CE | Yes, EMI Class A |
| FCC | Yes, EMI Class A |
| Regulatory Approvals | Eye Safety Class 1 IEC 60825-1:2007 (Certificate) |
| Starting Temperature | 0°C – +50°C (32°F – 122°F) |
| Operating Temperature | -10°C – +50°C (14°F – 122°F) |
| Storage Temperature | -25°C – +60°C (-13°F – 140°F) |
| Humidity | 0% – 90% RH |
| Casing Material | Aluminum alloy |
| Color (RAL Number) | White |
| Dimension | 150 (W) x 90 (H) x 55 (D) mm |
| Weight | 650g |
| Power Supply | DC12V ±10% |
| Power Consumption | DC12V, 3.5A, 42W |
| Illumination | 940nm VCSEL × 4, Class 1 |
| Accuracy* | ± 10 mm ± 0.5% of depth |
| Precision* | 15mm |
| Working Range | 0.3m~7. 4 meters |
| Video Compression | H.264 main and high profile , Motion JPEG |
|---|---|
| Resolution | 640 x 480 |
| Video Streaming | RTP/HTTP, RTP/TCP, RTP/UDP, Multicast streams in H.264 and Motion JPEG |
| Number of streams | 2 |
| Maximum Frame Rate | 15 fps @ 640 x 480 |
| Video Bitrate | 128Kbps – 2Mbps |
| Security Encryption | Base64 HTTP encryption, HTTPS encryption |
| Authentication | Digest HTTP authentication, RTSP authentication, DDNS via HTTPS |
| Address Filter | Yes |
| Access | Multiple user access levels with password protection |
| User accounts | 10 user accounts available |
| Metadata | Yes |
| RTCP Check | Yes |
| Max number of online users | 10 simultaneous users |
| Multi IP address | Yes |
| Event Triggers | Audio / Network lost detection / Global Counter / Virtual Input / Metadata |
| Event actions | FTP / SMTP / HTTP post / SD card / SAMBA / Alarm Output / Push Service / Global Counter / Virtual Input |
| Log | Event & operation log |
| Schedule | Support holiday list |
| CPU, Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU, 2GB LPDDR4X, 8GB e.MMC memory |
| OS | Embedded Linux 4.9 |
| Video Display | LILIN Universal ActiveX & HTML5 |
| Maintenance | Firmware update via HTTP and IP Scan, available at web site |
| Ethernet | 10BASE-T/100BASE-TX, RJ-45 |
| Network Protocols | IPv4, TCP, UDP, HTTP, HTTPS, QoS, NTP, DDNS, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, SMTP, Multicast |
| Network Storage | NAS (Support SAMBA/CIFS) |
24
25

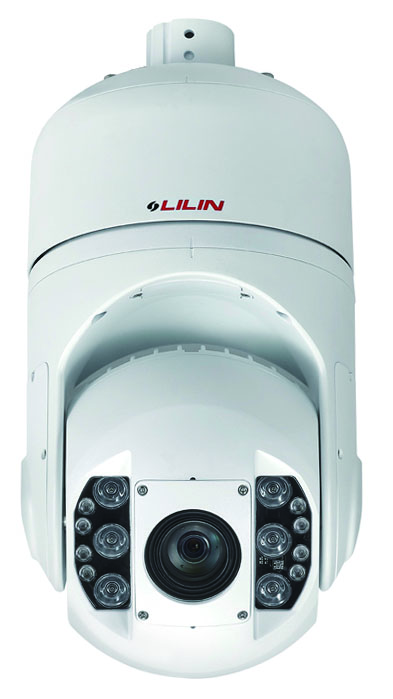

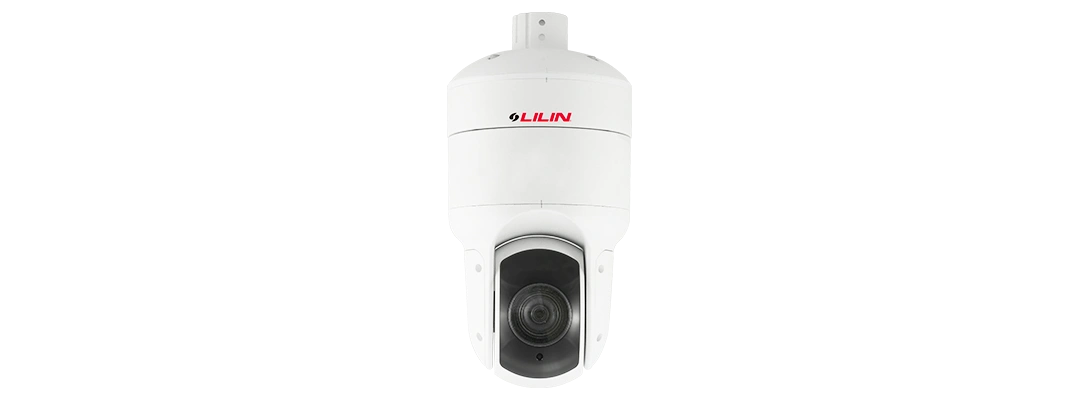

| PTZ Camera | ||
 |  | |
| Model | S8R5724EX25 | S8R5754EX25 |
|---|---|---|
| Resolution | 2MP (D & N) | 5MP (D & N) |
| Lens zoom ratio | 25X Optical | 25X Optical |
| Focal length | 5.3 mm – 132.5 mm | 5.3 mm – 132.5 mm |
| Pick up element | 1/2.8" CMOS image sensor | 1/2.8" CMOS image sensor |
| Effective pixels | 1945 × 1097 | 2616 × 1964 |
| Min. illumination | 0.01 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.002 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0.002 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.0004 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0 Lux with IR LED ON | 0.07 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.01 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0.01 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.001 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0 Lux with IR LED ON |
| Aperture range | F1.6 – 32 , Close | F1.6 – 32 , Close |
| Max. IR distance | 80M | 80M |
| Compression | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG | H.265/HEVC main profile, H.264 main and high profile, Motion JPEG |
| ePTZ & Digital Zoom | - / Yes (X8) | - / Yes (X8) |
| Sense Up | Supported | Supported |
| Electronic shutter speed | Supported | Supported |
| Digital noise reduction | Supported | Supported |
| High Dynamic Range | Supported (Up to 120dB ) | Supported (Up to 120dB ) |
| Defog | Supported | Supported |
| Electronic Image Stabilization | -- | -- |
| Privacy masking | 16 zone | 16 zone |
| Preset | 256 | 256 |
| Alarm I/O | 4 / 2 | 4 / 2 |
| Schedule setting | Supported | Supported |
| IP rating / Vandal resistant rating | IP66 / IK10 (Housing) | IP66 / IK10 (Housing) |
| Operating temperature | - 25°C – + 55°C ( - 13°F – + 131°F ) | - 25°C – + 55°C ( - 13°F – + 131°F ) |
| Power supply | AC24V ±10% / DC24V / PoE++(IEEE802.3bt) | AC24V ±10% / DC24V / PoE++(IEEE802.3bt) |
| Power consumption | AC24V, 34.7W (Motor Drive & Illumination OFF) AC24V, 46.5W (Motor Drive & Illumination On) POE++, 38.8W (Motor Drive & Illumination OFF) POE++, 48W (Motor Drive & Illumination On) | AC24V, 36.7W (Motor Drive & Illumination OFF) AC24V, 47.3W (Motor Drive & Illumination On) POE++, 37.6W (Motor Drive & Illumination OFF) POE++, 49W (Motor Drive & Illumination On) |
| Mobile phone | iOS, Android | iOS, Android |
| Audio capability | Two-way Audio | Two-way Audio |
| Micro SD/SDHC card | Micro SD / SDHC / SDXC card Supported | Micro SD / SDHC / SDXC card Supported |
| ONVIF | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G | ONVIF Profile S / ONVIF Profile T / ONVIF Profile G |
26

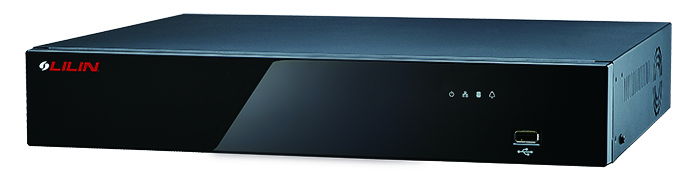

| NVR Recorders | |||
 | | | |
| Model | NVR6104E | NVR6208E | NVR6216E |
|---|---|---|---|
| Type | 4K | 4K | 4K |
| IP video input | 4 CH | 8 CH | 16 CH |
| Max Frame Rate | 120 FPS | 240 FPS | 480 FPS |
| Max network throughput | 32Mbps | 64Mbps | 96Mbps |
| HDD disk | 1 × 3.5" HDD (Up to 16TB supported) | 2 × 3.5" HDD (Up to 16TB supported) | 2 × 3.5" HDD (Up to 16TB supported) |
| External storage | - | - | - |
| Resolution | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Backup | USB flash disk / HTTP / FTP | USB flash disk / HTTP / FTP | USB flash disk / HTTP / FTP |
| Output | HDMI 1.4 (4K 30P) / VGA 1080P output | HDMI 1.4 (4K 30P) / VGA 1080P output | HDMI 1.4 (4K 30P) / VGA 1080P output |
| Alarm/event | DI × 4 and DO × 1 (With programmable condition) | DI × 8 and DO × 1 (With programmable condition) | DI × 8 and DO × 1 (With programmable condition) |
| Remote controller | Remote controller addressable up to 255 NVRs (Optional) | Remote controller addressable up to 255 NVRs (Optional) | Remote controller addressable up to 255 NVRs (Optional) |
| Ports | RJ-45 Gigabit Ethernet × 1, RJ-45 100Mbps PoE × 4 (802.3af) | RJ-45 Gigabit Ethernet × 1, RJ-45 100Mbps PoE × 8 (802.3af) | RJ-45 Gigabit Ethernet × 1, RJ-45 100Mbps PoE ×16 (802.3af) |
| Protocol | ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S | ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S | ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S |
| Keyboard | Support PIH-931D keyboard input (Connector box required) | Support PIH-931D keyboard input (Connector box required) | Support PIH-931D keyboard input (Connector box required) |
| Audio out | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Web access | Live / playback / backup / menu configuration / event log | Live / playback / backup / menu configuration / event log | Live / playback / backup / menu configuration / event log |
| Mobile phone | iOS / Android supported | iOS / Android supported | iOS / Android supported |
| Multi-language | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Slovakian, Bulgarian, Danish, Czech | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Slovakian, Bulgarian, Danish, Czech | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Slovakian, Bulgarian, Danish, Czech |
| Operating temperature | 0°C ~ 45°C | 0°C ~ 45°C | 0°C ~ 45°C |
| Dimension (W×L×H) | 360 × 316 × 60 mm | 360 × 316 × 60 mm | 360 × 316 × 60 mm |
| Power supply | DC 48V 1.35A 65W (Max) for HDDs and cameras | DC 48V 2.5A 120W (Max) for HDDs and cameras | DC 48V 3.75A 180W (Max) for HDDs and cameras |
| Others | •WS-Discovery •P2P supported •S.M.A.R.T monitoring •External USB GPS time sync •Chrome, Edge, Firefox, IE, Opera, Safari supported •4 Port PoE, automatic network camera plug and play •GPS communications | •WS-Discovery •P2P supported •S.M.A.R.T monitoring •External USB GPS time sync •Chrome, Edge, Firefox, IE, Opera, Safari supported •8 Port PoE, automatic network camera plug and play •GPS communications | •WS-Discovery •P2P supported •S.M.A.R.T monitoring •External USB GPS time sync •Chrome, Edge, Firefox, IE, Opera, Safari supported •16 Port PoE, automatic network camera plug and play •GPS communications |
27

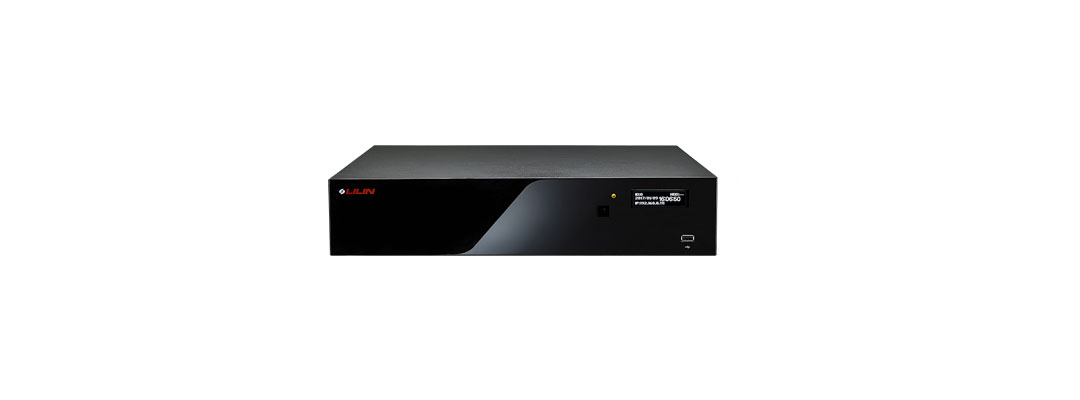

| NVR Recorders | ||
 | | |
| Model | NVR6832E | NVR5104E |
|---|---|---|
| Type | 4K | 4K |
| IP video input | 32 CH | 4 CH |
| Max Frame Rate | 960 FPS | 160 FPS |
| Max network throughput | 300Mbps (RAID 160Mbps) | 32Mbps |
| HDD disk | 8 × 3.5" HDD (Up to 16TB supported) | 1 × 3.5" HDD (Up to 16TB supported) |
| External storage | - | - |
| Resolution | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF | 4K / 5M / 4M / 3M / 1080P / 1.3M / 1M / 960H / D1 / VGA / CIF |
| Backup | USB flash disk / HTTP / FTP | USB flash disk / HTTP / FTP |
| Output | HDMI 2.0 4K 60P / VGA 1080P 60fps output | HDMI 1.4 (4K 30P) / VGA 1080P output |
| Alarm/event | DI × 16 and DO × 4 (With programmable condition) | DI × 4 and DO × 1 (With programmable condition) |
| Remote controller | Remote controller addressable up to 255 NVRs (Optional) | Remote controller addressable up to 255 NVRs (Optional) |
| Ports | RJ-45 Gigabit Ethernet × 1, RJ-45 100Mbps PoE ×16 (802.3af) | RJ-45 Gigabit Ethernet × 1, RJ-45 100Mbps PoE × 4 (802.3af) |
| Protocol | ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S / ONVIF Profile G | ARP / TCP/IP / UDP / HTTP / HTTPS / SMTP / SNMP / FTP / DDNS / PPPoE / NTP / RTP / RTSP / DHCP/ ONVIF Profile S |
| Keyboard | Support PIH-931D keyboard input (Connector box required) | PIH-931D keyboard input (Connector box required) |
| Audio out | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) | RCA × 1 (0.7Vp-p, 300 Hz to 3KHz) |
| Web access | Live / playback / backup / menu configuration / event log | Live / playback / backup / menu configuration / event log |
| Mobile phone | iOS / Android supported | iOS / Android supported |
| Multi-language | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish, Slovakian, Bulgarian, Danish, Czech | Arabic, Traditional Chinese, Simplified Chinese, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Turkish |
| Operating temperature | 0°C ~ 45°C | 0°C ~ 45°C |
| Dimension (W×L×H) | 438 × 451 × 87 mm | 360 × 316 × 60 mm |
| Power supply | AC Input 100 ~ 240V 60/ 50HZ, DC Output 12V 10A, 53V 4A，280W(Max) | DC 48V 1.35A 65W (Max) for HDDs and cameras |
| Others | •WS-Discovery •P2P supported •S.M.A.R.T monitoring •External USB GPS time sync •Chrome, Edge, Firefox, IE, Opera, Safari supported •16 Port PoE, automatic network camera plug and play •GPS communications | •WS-Discovery •P2P supported •S.M.A.R.T monitoring •External USB GPS time sync •Chrome, Edge, Firefox, IE, Opera, Safari supported •4 Port PoE, automatic network camera plug and play •GPS communications |
28

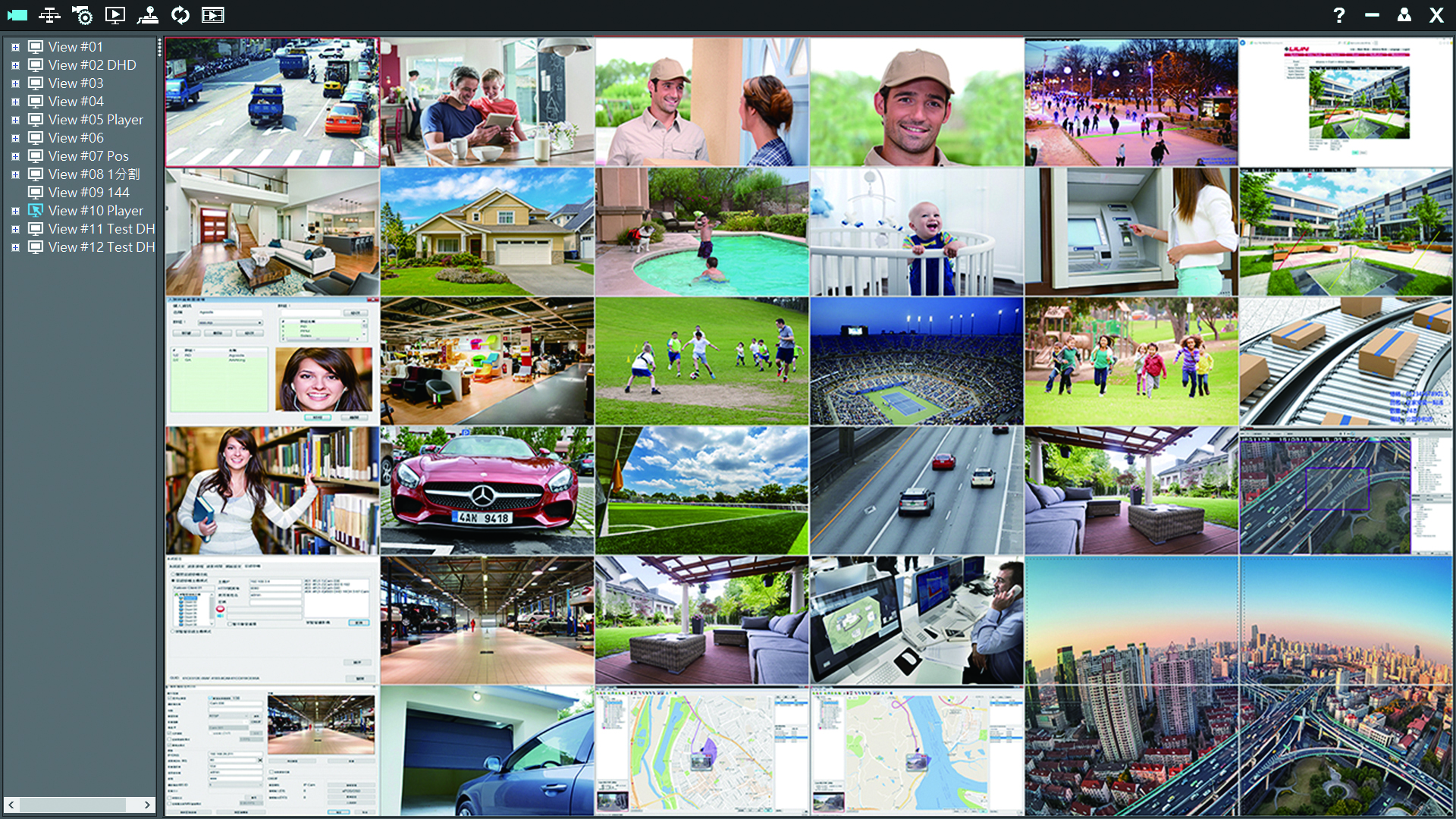

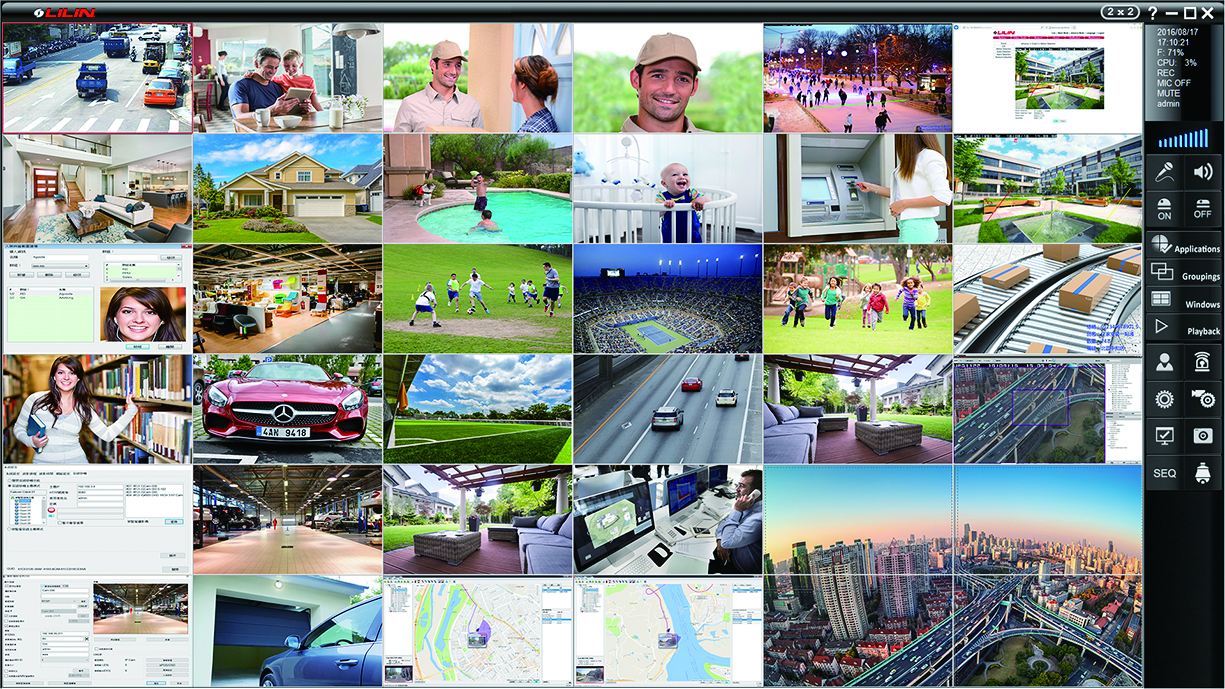

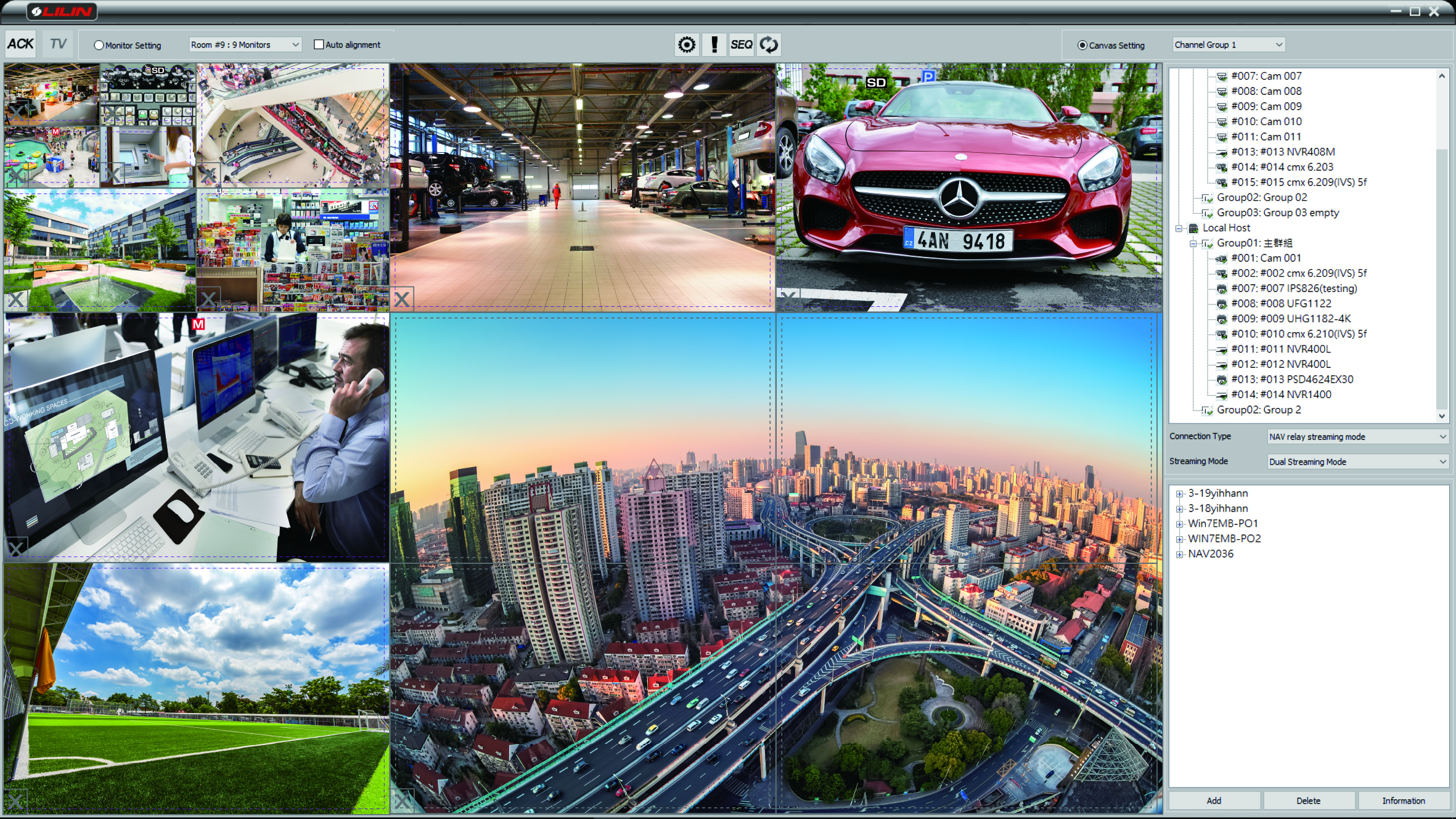

| Navigator 5.0 VMS | |
 | |
| Model | NAV Corporate 5.0 |
|---|---|
| OS | Windows 10&11 Embedded SAC 64bit ( Professional 20H2 above), Server 2012R2, 2016 |
| Record channel max | 108 |
| Split screen | 4, 9 , 16, 25, 36 |
| Resolution | Max 12MP@20fps, 8MP@30fps, 5MP@30fps, 4MP@30fps, 3MP@30fps, 1080p@120fps, and ROI recording supported |
| Playback Compression | H.265/ H.264/ JPEG |
| Support ONVIF IPC | Authorized use |
| Recording Mode | No recording, record main stream, record substream, record dual stream, low bitrate recording mode |
| HDD Circular Recording customizable | Supported |
| Video Reserved days | 1 to 365 days |
| Snapshot Reserved days | 1 to 365 days |
| Raid System Monitor | Supported |
| RAID Hard disk failure notification | Supported |
| Daily System Reboot time adjustable | - |
| Low Bandwidth Mode | JPEG snapshot input and record (1 FPS, 0.5 FPS, 0.333 FPS, 0.25 FPS, 0.2 FPS, 0.167 FPS) |
| Recording Schedule | 7 days × 24 hrs time table, recording mode configurable(Always, No Record, Motion) |
| Assign Recording Disk | Supported |
| Recording Calculator | YYes, dynamically calculating available recording days |
| External Storage Recording | Support NAS (SMB/CIFS), iSCSI |
| Failover | Supported / can rescue 36 channels of each server |
| Archiving | Supported |
| Video Input | LILIN IP camera, LILIN IP camera over HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder,NAV live streaming, P2P live streaming, ONVIF camera, 1FPS record(JPEG), Manual RTSP, Remote Screen Capture |
| Alarm Input | Remote digital input, remote IVS detection, remote tamper detection, remote audio detection, external IO, motion detection, NAV CGI Triggering, video loss detection, speed measurement detection, ANPR detection, facial recognition, remote ANPR detection, QR code detection, AIDA behavior detection |
| Alarm Output | Play audio file, send email notification, PTZ preset, digital output triggering, full screen, post alarm record, pre-alarm record, advanced alarm digital output, send customizable HTTP POST CGI URL to third party device, alarm ACK, alarm snapshot, text overlay, App cloud push notification, NCC TV wall ACK, NCC eMap Center Alarm, NCC play sound, NCC global alarm setting, all these action can be automatic or scheduled |
| Digital Output | LILIN NVR digital output, LILIN DHD recorder digital output, LILIN IP camera digital output, LILIN IOBOX digital output, third party TCP/IP digital output supported. |
|---|---|
| Alarm Scheduling | Up to four alarm tables with AND logic |
| Event Thumbnails bar length customizable | Auto, 3 to 13 snapshots in a bar (FACE、ANPR、Traffic incident) |
| Grouping setting | User can create up to 20 group, maximum number of channel up to 720 |
| Digital Zoom | Yes, ePTZ supported for live and playback |
| PTZ control | Mouse control, zoom in/out, , Moving direction |
| Digital watermark | DVR/DHD/NVR and NAV backup watermark checker |
| Privacy Mask | Supported |
| Sequence display | Supported |
| Fisheye Dewarp | Support Immervision lens |
| Fisheye Dewarp Mode | (Ceiling and ground mounted) 1R One Region, 3R1O Three Regions One Fisheye, 4R Four Regions, 2R1P Two Regions One Panoramic 360 , 2P Two Panoramics 180, 8R1O Eight Regions One (Fisheye Wall mounted) 1R One Region, 3R1O Three Regions One Fisheye, 4R Four Regions, 2R1P Two Regions One Panoramic 180 , 1WP One Wall Panoramic 180 , 8R1O Eight Regions One Fisheye |
| eMap | Supported |
| Audio | PCM/G.711/AAC Live monitoring, IPCAM two-way audio (NVR one-way audio), audio recording |
| eMap control 2 x 2 TV wall (offline) | Supported |
| NVR P2P connection | Supported |
29
| Navigator 5.0 CMS | ||
 |  | |
| Model | NAV Control Center 5.0 | Navigator Clinet 5.0 |
|---|---|---|
| OS | Windows 10&11 Embedded SAC 64bit (Professional Edition 20H2 or above), Server 2012R2, 2016 | Windows 10&11 Embedded SAC 64bit (Professional Edition 20H2 or above), Server 2012R2, 2016 |
| Channel max | 1 ~ 144 | 1 ~ 144 |
| Split screen | 1~144, User-defined | 1~144, User-defined |
| Playback Compression | H.265/ H.264 /JPEG | H.265/ H.264 /JPEG |
| LDAP/AD Management | Supported | Supported |
| User Management | Camera access and function access right manageable | |
| User Group Management | Centralized user management database up to 512 user groups and 1000 users per group | |
| Camera Status Management | Camera connection, authentication, view set up, and recording statuses | |
| Camera Preview | Yes | Yes |
| Camera View Group | Drag-n-drop, DVR/DHD/NVR channels import, and channel switching | |
| Live IP Video Input | Supports video stream | |
| Fisheye Dewarp | Support Immervision lens | |
| Fisheye Dewarp Mode | (Ceiling and ground mounted) 1R One Region, 3R1O Three Regions One Fisheye, 4R Four Regions, 2R1P Two Regions One Panoramic 360 , 2P Two Panoramics 180, 8R1O Eight Regions One (Fisheye Wall mounted) 1R One Region, 3R1O Three Regions One Fisheye, 4R Four Regions, 2R1P Two Regions One Panoramic 180 , 1WP One Wall Panoramic 180 , 8R1O Eight Regions One Fisheye | |
| Spot Monitor | Yes, live sequence display and playback | |
| Digital Zoom | Yes, ePTZ supported for live and playback | |
| PTZ control | Yes, on-screen PTZ control and button control | |
| Backup / Playback | NAV/DVR/DHD/NVR remote file download, AVI and MP4 conversion and JPEG snapshot | |
| Multiple Channel Playback | Simultaneous playback of up to 36 screens (subject to host device hardware or bandwidth conditions) | |
| Asynchronous Time Playback for Same Camera | Playback at different time points | |
| Instant Playback | Quick playback from 5 minutes ago | |
| Remote DVR/DHD/NVR Video Playback | Support NAV host/DVR/DHD/NVR/IP camera SD card, etc. equipment, up to 36 channels of simultaneous playback and 36 channels of backup | |
| GPS | Support, GPS fleet movement track and map tracking, map live traffic conditions and playback | - |
| NAV Control Center 5.0 | Navigator Clinet 5.0 | |
| Alarm Triggering | PC alarm sound, designated IP camera alarm DO output, eMail photo output, PTZ preset point output, notification TV wall projection, emap marker display | - |
|---|---|---|
| Database Manager | Various alarm events, screen/network disconnection, login and logout, operation event table | - |
| NAV Operation Status | NAV host maintenance status | - |
| Video Decoder | LILIN VD022 for video wall | - |
| Physical Monitors | Up to 1440 physical remote monitors supported by network (based on number of video output available on external graphic card from dedicated server) | - |
| Video Wall Monitor | Each room can allocate up to 144 monitors to be combined freely | - |
| Rooms of the Wall | 199 rooms supported for various monitor layouts | - |
| Import View From Client to TV Wall | Support, View Manager canvas template | - |
| Display One Camera Over Several Monitor | Supported | - |
| Sequence Mode | Supported | - |
| Online / Offline maps | Up to 128 online maps and 128 offline maps | - |
| eMap Offline Map File | JPEG format supported | - |
| EMap Camera Marks | Up to 1024 camera marks per online map. Up to 36 camera marks per offline map. | - |
| eMap Live Monitoring | Up to 64 live videos per map. | - |
| eMap Alarm Snapshot | Motion detection / external alarm / sound detection / face detection / face recognition / license plate recognition | - |
| Sync Server Setting | User account DB, NAV camera configuration, Facial recognition allowed and denial DB, ANPR allowed and denial DB, NCC camera configuration, eMaps configuration, Remote Group Name | - |
30
31
We integrate image recognition and monitoring toprovide a comprehensive solution
MADE IN TAIWAN
LILIN provides a full range of cameras, cost-effective standalone NVRs, robust servers, andadvanced video management systems. Whether for entry-level or advanced needs, we serve as yourcomprehensive AI surveillance solution provider.
LILIN operates its own factory with excellent production efficiency and quality control.
Our integrated capabilities in design, development, and manufacturing ensure prompt response to your needs.
Half a century of excellence in surveillance camera production
|LILIN has extensive experience in handlingissues that may arise, greatly reducing thecost of communication with clients.
|Flexible global business capabilities and diverseservices from economical solutions to massdeployment, and diversification to fit every demand.
|Quick response to each requirement tocomplete a project in a tight timeframe.
|Nothing is uncustomizable, semi-custom withslight modifications or fully customized withspecifications to precisely meet your needs.
LILIN USA sales territories
Merit LILIN USA Corporation | 11836 Clark St, Arcadia, CA 91006 | sales@meritlilin.us
West Coast / Canada
Julie Changjchang@meritlilin.us
South/Central Coast
David Dentonddenton@meritlilin.us
North/East Coast
David Millerdmiller@meritlilin.us
Latin America / Puerto Rico
Amaro Leonaleon@meritlilin.us
Distribution
Crystal Xucxu@meritlilin.us
Sales Engineers
Amaro Leonaleon@meritlilin.us
Vincent Joaquinv.joaquin@meritlilin.us
Territories and contacts are reproduced from the US Where to Buy page. Contact LILIN USA to confirm current coverage.
www.meritlilin.us/where-to-buy/
32
Sales representatives
Merit LILIN USA Corporation | 11836 Clark St, Arcadia, CA 91006 | sales@meritlilin.us
CO | Intelligent Systems Marketing, Inc.
Jim Aspinwalljim@ismrep.com
FL | C&E Marketing
Andrew Moralesamorales@ce-fl.com
Clarke Vasseycvassey@ce-fl.com
Joe McHughjmchugh@ce-fl.com
Karl Nickelknickel@ce-fl.com
Michael Sajeckimsajecki@ce-fl.com
Wayne Augustinwaugustin@ce-fl.com
NJ, NY | Digital Sales Group Metro
Joanna Mikuckijoannam@dsgdist.com
Territories and contacts are reproduced from the US Where to Buy page. Contact LILIN USA to confirm current coverage.
www.meritlilin.us/where-to-buy/
33
AiN Group sales territories
Merit LILIN USA Corporation | 11836 Clark St, Arcadia, CA 91006 | sales@meritlilin.us
West Coast
Crystal Xucxu@meritlilin.us
South/Central Coast
David Dentonddenton@meritlilin.us
North/East Coast
David Millerdmiller@meritlilin.us
UT, AZ, CO, NM
Julie Changjchang@meritlilin.us
Sales Engineers
Amaro Leonaleon@meritlilin.us
Vincent Joaquinv.joaquin@meritlilin.us
Territories and contacts are reproduced from the US Where to Buy page. Contact LILIN USA to confirm current coverage.
www.meritlilin.us/where-to-buy/
34
US Sales and Support
Contact LILIN USA for product selection, purchasing channels and technical assistance.
Merit LILIN USA Corporation
11836 Clark St, Arcadia, CA 91006 | +1 626 930 1000 | info@meritlilin.us
35
Know More
261007 | 70-IP1026-US
Merit LILIN USA Corporation
Based in Arcadia, California, LILIN USA is the US subsidiary of Merit LILIN Ent. Co., Ltd. The team provides sales and project assistance, purchasing channels and technical support for LILIN surveillance products.
LILIN develops and manufactures its products in Taiwan. The portfolio includes IP cameras, recorders, servers and video management software.
Headquarters: Taipei, Taiwan | www.meritlilin.com
LILIN USA
11836 Clark St
Arcadia, CA 91006
info@meritlilin.us
+1 626 930 1000
www.meritlilin.us
Sales and purchasing
sales@meritlilin.us
Find your regional sales contact
Where to Buy
www.meritlilin.us/where-to-buy/
Technical support
support@meritlilin.us
+1 626 739 1840
Warranty & RMA
www.meritlilin.us/support/
Where to Buy
